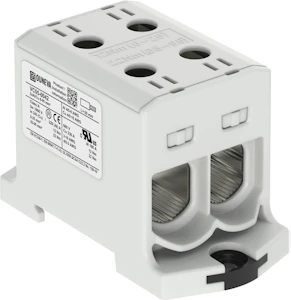

CONNECTOR 2XAL/CU, 6-95MM2
Product code
1914115
The product can be delivered from web store
In stock
The product is available in express stores
Kivenlahti Express
Muurala Mega Express
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve6 ... 70 mm²
Connectable conductor cross section fine-strand with cable end sleeve6 ... 70 mm²
Connectable conductor cross section solid-core6 ... 95 mm²
Connectable conductor cross section multi-wired6 ... 95 mm²
Rated current In490 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25 ... 80 °C
Inflammability class of insulation material according to with UL94V0
Product codes
SAPALT514
PLC1914115
STK1914115
GTIN/EAN6410019141153
Manufacturer part numberVC05-0042
Vendor material number1914115
Basic information
Package measurements (L x W x H)83 x 42 x 50 mm
Package volume0.174 l
Package weight0.11 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
