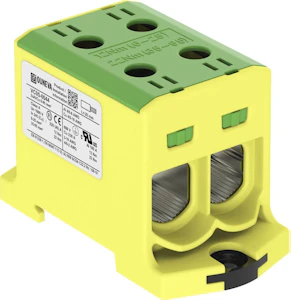

CONNECTOR 2XAL/CU, 6-95MM2

Product code
1914117
No product description available.

Product details

Technical specifications

Connectable conductor cross section fine-strand without cable end sleeve6 ... 70 mm²
Connectable conductor cross section fine-strand with cable end sleeve6 ... 70 mm²
Connectable conductor cross section solid-core6 ... 95 mm²
Connectable conductor cross section multi-wired6 ... 95 mm²
Rated current In490 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25 ... 80 °C
Inflammability class of insulation material according to with UL94V0

Product codes

SAPALT516
PLC1914117
STK1914117
GTIN/EAN6410019141177
Manufacturer part numberVC05-0044
Vendor material number1914117

Basic information

Package measurements (L x W x H)83 x 42 x 50 mm
Package volume0.174 l
Package weight0.11 kg
Base uniteach
Package units1 / 24
Package contents
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
