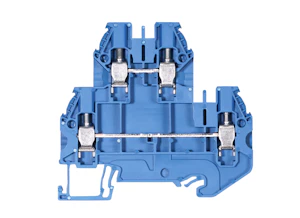

TERMINAL WT 4 E BL BLUE TERMINAL WT 4 E BL BLUE
Product code
1903166
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 ... 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 4 mm²
Connectable conductor cross section solid-core0.14 ... 6 mm²
Connectable conductor cross section multi-wired0.14 ... 6 mm²
Rated current In32 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels2
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25 ... 70 °C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'false
Product codes
SAPASF971
PLC1903166
STK1903166
GTIN/EAN4049088164422
Manufacturer part number58.504.7055.6
Vendor material number58.504.7055.6
