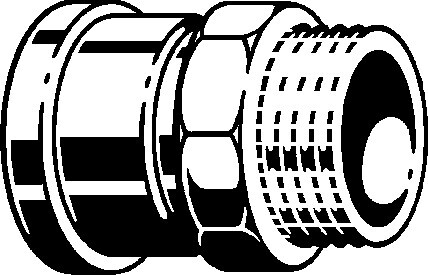

PRESS ADAPTER WITH MT SS 64x2 1/2 VIEGA

Name: PRESS ADAPTER WITH MT SS 64x2 1/2 VIEGA
Brand: VIEGA
SKU: CBI373

Product code

1282031

No product description available.

Product details

Material connection 1Stainless steel

Material quality connection 1Stainless steel 316 (1.4401)

Material connection 2Stainless steel

Material quality connection 2Stainless steel 316 (1.4401)

ShapeStraight

Model1-part

Bend angle0 °

Nominal diameter connection 164 mm

Outer pipe diameter connection 164 mm

Connection 1Press sleeve

Nominal diameter connection 22 1/2 inch (65)

Connection 2External thread conical (NPT)

Material sealingEthylene-propylene diene monomer rubber (EPDM)

Length109 mm

Max. operating pressure at 20 °C16 bar

SAPCBI373

HPAC1282031

PLC1282031

GTIN/EAN4015211619985

Manufacturer part number619985

Vendor material number619985

Package measurements (L x W x H)110 x 72 x 72 mm

Package volume0.57 l

Package weight0.964 kg

Base uniteach

Package units1 / 12

Package contents–

UNSPSC40172607

BrandVIEGA

VendorVIEGA CE GMBH & CO. KG
