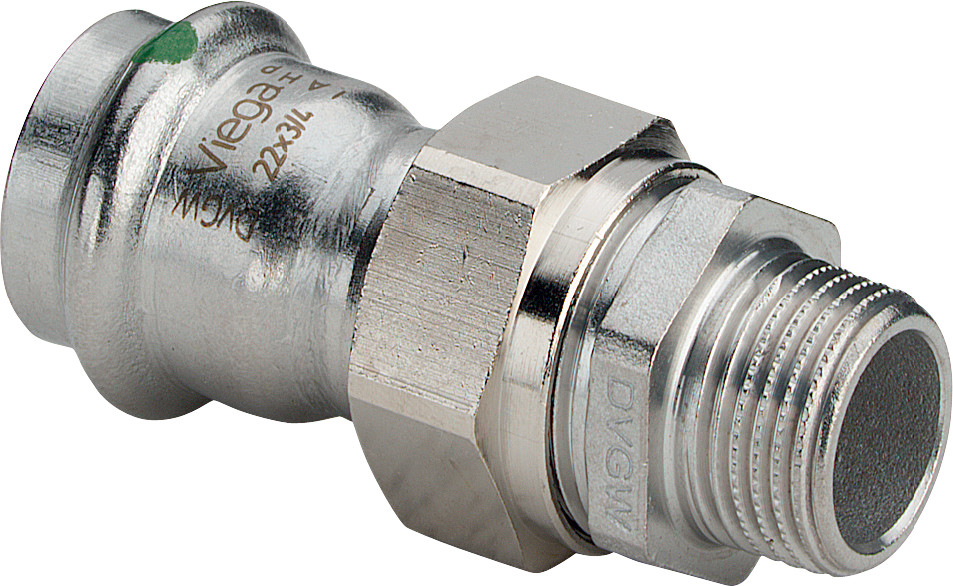

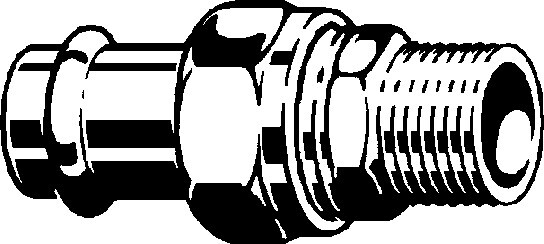

PRESS ADAPTER UNION MT SS 22x1 VIEGA

Name: PRESS ADAPTER UNION MT SS 22x1 VIEGA
Brand: VIEGA
SKU: CBI387

Product code

1282316

No product description available.

Product details

Material connection 1Stainless steel

Material connection 2Stainless steel

ShapeStraight

Model1-part

Bend angle0 °

System-specifictrue

Nominal diameter connection 122 mm

Outer pipe diameter connection 122 mm

Connection 1Press sleeve

Nominal diameter connection 21 inch (25)

Connection 2External thread metric

Material sealingEthylene-propylene diene monomer rubber (EPDM)

Length77.1 mm

Working length connection 254.1 mm

Max. operating pressure at 20 °C16 bar

SAPCBI387

HPAC1282316

PLC1282316

GTIN/EAN4015211438319

Manufacturer part number438319

Vendor material number438319

Package measurements (L x W x H)59 x 39 x 39 mm

Package volume0.09 l

Package weight0.251 kg

Base uniteach

Package units1 / 5 / 50

Package contents–

UNSPSC40172607

BrandVIEGA

VendorVIEGA CE GMBH & CO. KG
