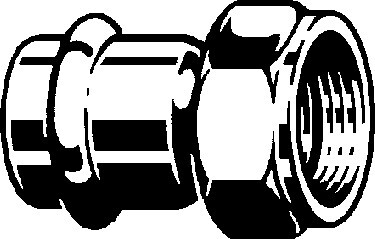

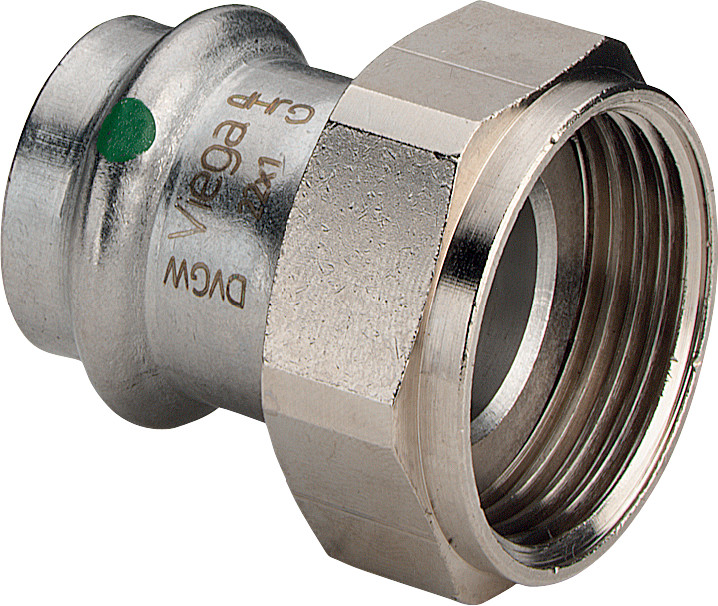

PRESS ADAPTER UNION FT SS 28x1 1/4 VIEGA

Product code
1282442
No product description available.

Product details

Technical specifications

Material connection 1Stainless steel
Material connection 2Stainless steel
ShapeStraight
Model1-part
System-specifictrue
Nominal diameter connection 128 mm
Outer pipe diameter connection 128 mm
Connection 1Press sleeve
Nominal diameter connection 21 1/4 inch (32)
Connection 2Inner thread "ISO 7-1"
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Length of connection 153 mm
Length of connection 210.5 mm
Working length connection 218 mm
Max. operating pressure at 20 °C85 bar

Product codes

SAPCBI318
HPAC1282442
PLC1282442
GTIN/EAN4015211437640
Manufacturer part number437640
Vendor material number437640

Basic information

Package measurements (L x W x H)79 x 43 x 43 mm
Package volume0.146 l
Package weight0.147 kg
Base uniteach
Package units1 / 5 / 75
Package contents
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG

Documents (4)
