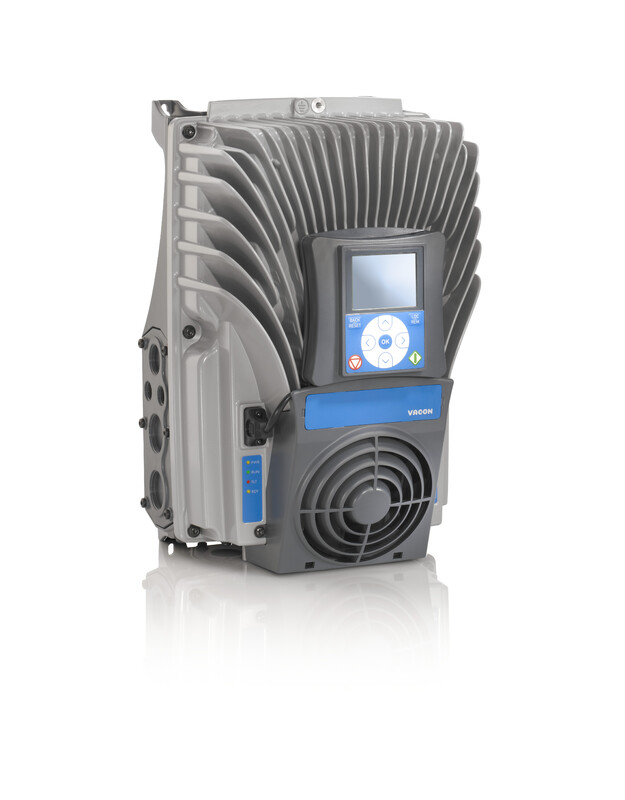

FREQUENCY CONVERTER VACON 100X 7,5kW/16A, IP66, HMGR
Product code
3888664
No product description available.
Product details
Technical specifications
Mains voltage380 ... 500 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency320 Hz
Max. output voltage500 V
Nominal output current I2N16 A
Max. output at linear load at rated output voltage7.5 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs1
Number of digital inputs6
With control elementtrue
Application in industrial area permittedtrue
Application in domestic- and commercial area permittedtrue
Product codes
SAPDAZ723
PLC3888664
STK3888664
GTIN/EAN5710108867157
Manufacturer part number136G2126
Vendor material number136G2126
Basic information
Package measurements (L x W x H)570 x 360 x 300 mm
Package volume61.56 l
Package weight15.7 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandVACON
VendorDANFOSS OY AB
