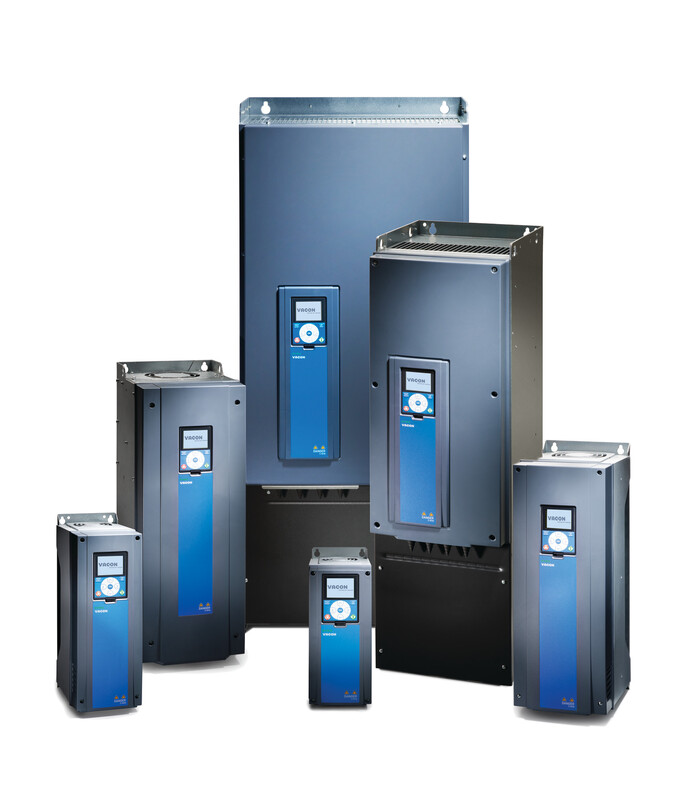

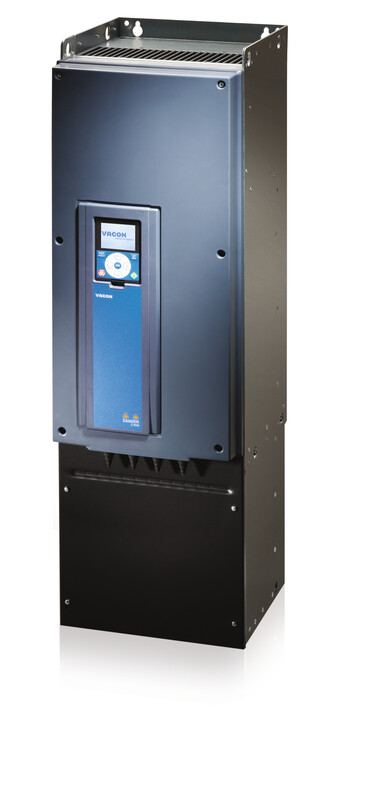

FREQUENCY CONVERTER 0100-3L-0205-5, 110kW
Product code
3888607
No product description available.
Product details
Technical specifications
Mains voltage380 ... 500 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency320 Hz
Max. output voltage500 V
Nominal output current I2N205 A
Max. output at quadratic load at rated output voltage110 kW
Max. output at linear load at rated output voltage90 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs1
Number of digital inputs6
With control elementtrue
Application in industrial area permittedtrue
Product codes
SAPCER757
PLC3888607
STK3888607
GTIN/EAN6410038886073
Manufacturer part number136N5373
Vendor material number136N5373
Basic information
Package measurements (L x W x H)1100 x 540 x 430 mm
Package volume255.42 l
Package weight73 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandVACON
VendorDANFOSS OY AB
The country of origin stated by the supplierFinland
