LS 1NO1NC SLWA 1M CABLE XCMD2511L1
Product code
2320567

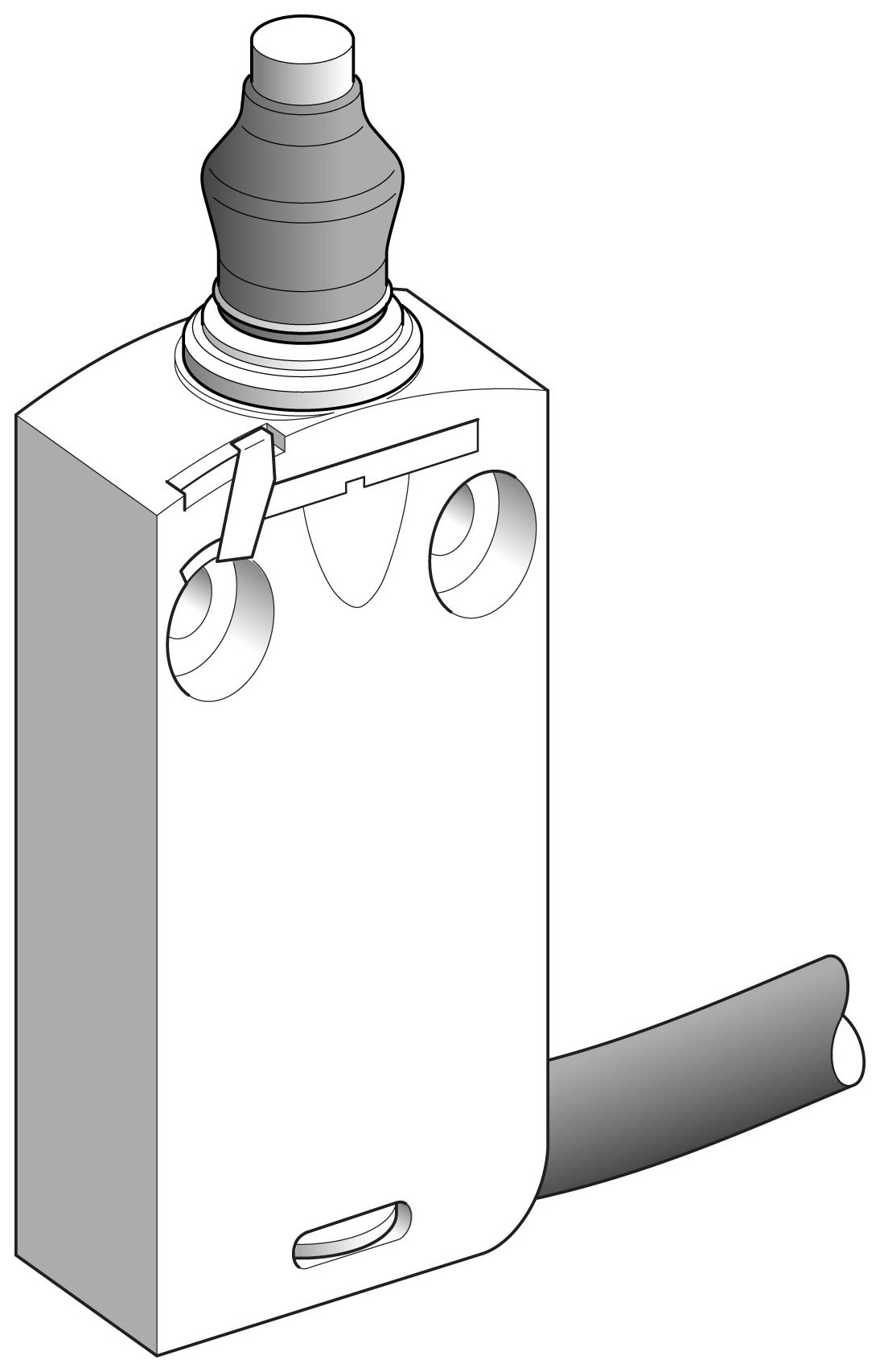

Limit switch XCMD, metal end plunger with nitrile boot, 1NC+1NO, slow, 1m
Limit switch XCMD, metal end plunger with nitrile boot, 1NC+1NO, slow, 1m. range of product: OsiSense XC - series name: standard format - product or component type: limit switch - device short name: XCMD - body type: fixed - head type: plunger head - head material: zamak - fixing mode: by the body - contacts type and composition: 1 NC + 1 NO. Benefits: .. Applications: ..
Product details
Technical specifications
Width sensor30 mm
Diameter sensor0 mm
Height of sensor50 mm
Length of sensor16 mm
Rated operation current Ie at AC-15, 24 V0 A
Rated operation current Ie at AC-15, 125 V0 A
Rated operation current Ie at AC-15, 230 V1.5 A
Rated operation current Ie at DC-13, 24 V0 A
Rated operation current Ie at DC-13, 125 V0 A
Rated operation current Ie at DC-13, 230 V0.1 A
Switching functionSlow-action switch and quick-break switch
Switching function latchingfalse
Output electronicfalse
Forced openingtrue
Number of safety auxiliary contacts0
Product codes
SAPACP446
PLC2320567
STK2320567
GTIN/EAN3389110221176
Manufacturer part numberXCMD2511L1
Vendor material numberXCMD2511L1
Basic information
Package measurements (L x W x H)120 x 125 x 20 mm
Package volume0.3 l
Package weight0.16 kg
Base uniteach
Package units1 / 65
Package contents–
UNSPSC39121522
BrandTELEMECANIQUE
VendorTESE DENMARK APS
