LS 1NO1NC SA M12 4 PINS XCMD2117M12
Product code
2320531

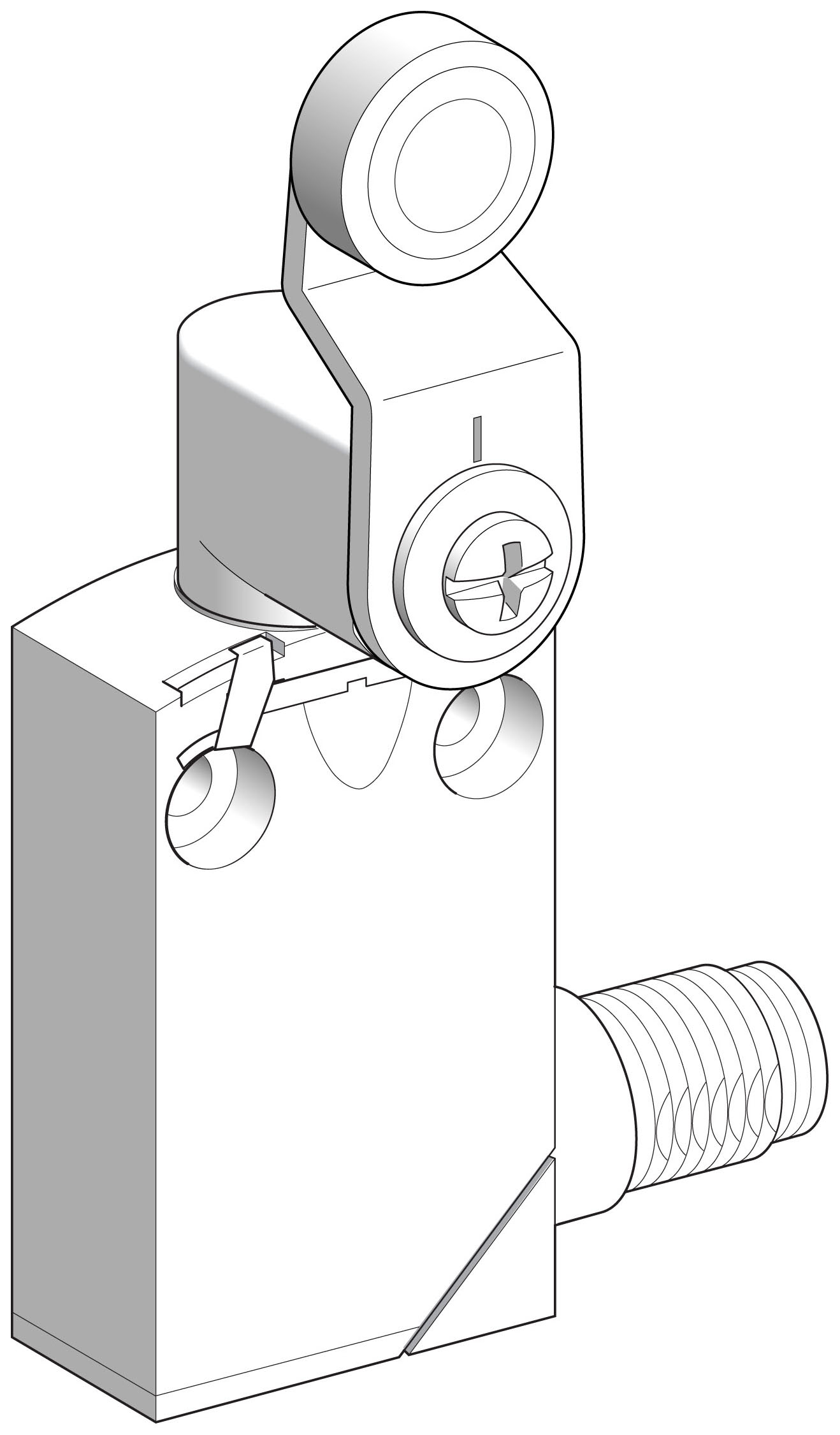

Limit switch XCMD, steel ball bearing mount. roller lev., 1C/O, snap, M12
Limit switch XCMD, steel ball bearing mount. roller lev., 1C/O, snap, M12. range of product: OsiSense XC - series name: standard format - product or component type: limit switch - device short name: XCMD - body type: plug-in body - head type: rotary head - head material: zamak - fixing mode: by the body - movement of operating head: rotary - contacts type and composition: 1 C/O. Benefits: .. Applications: ..
Product details
Technical specifications
Width sensor30 mm
Height of sensor50 mm
Length of sensor16 mm
Rated operation current Ie at AC-15, 230 V1.5 A
Rated operation current Ie at DC-13, 230 V0.1 A
Switching functionQuick-break switch
Switching function latchingfalse
Output electronicfalse
Forced openingfalse
Number of safety auxiliary contacts0
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact1
Type of interfaceNone
Type of interface for safety communicationNone
Product codes
SAPACP424
PLC2320531
STK2320531
GTIN/EAN3389110221497
Manufacturer part numberXCMD2117M12
Vendor material numberXCMD2117M12
Basic information
Package measurements (L x W x H)40 x 33 x 120 mm
Package volume0.158 l
Package weight0.11 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121522
BrandTELEMECANIQUE
VendorTESE DENMARK APS
