LS 1NO1NC SA CE ISO20 XCKN2149P20
Product code
2320289

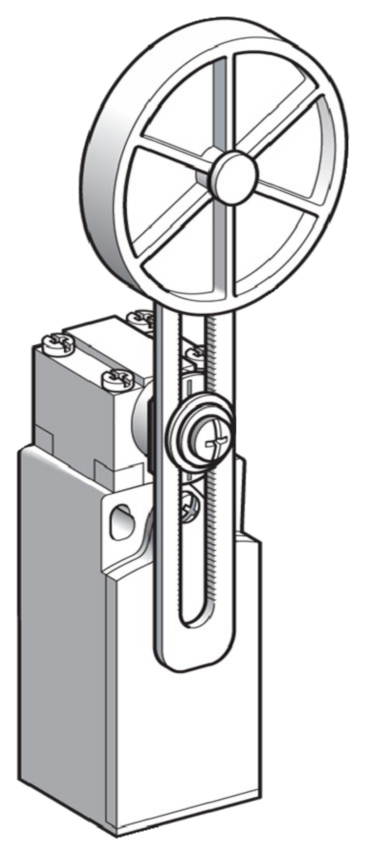

Limit switch XCKN, plastic roller lever Ø50 var.length, 1NC+1NO, snap, M20
Limit switch XCKN, plastic roller lever Ø50 var.length, 1NC+1NO, snap, M20. range of product: OsiSense XC - series name: standard format - product or component type: limit switch - device short name: XCKN - body type: fixed - head type: rotary head - head material: plastic - fixing mode: by the body - movement of operating head: rotary - contacts type and composition: 1 NC + 1 NO. Benefits: .. Applications: ..
Product details
Technical specifications
Width sensor30 mm
Diameter sensor0 mm
Height of sensor173 mm
Length of sensor48 mm
Rated operation current Ie at AC-15, 24 V0 A
Rated operation current Ie at AC-15, 125 V0 A
Rated operation current Ie at AC-15, 230 V3 A
Rated operation current Ie at DC-13, 24 V0 A
Rated operation current Ie at DC-13, 125 V0 A
Rated operation current Ie at DC-13, 230 V0.1 A
Switching functionQuick-break switch
Switching function latchingfalse
Output electronicfalse
Forced openingtrue
Number of safety auxiliary contacts0
Product codes
SAPACP283
PLC2320289
STK2320289
GTIN/EAN3389110214338
Manufacturer part numberXCKN2149P20
Vendor material numberXCKN2149P20
Basic information
Package measurements (L x W x H)140 x 500 x 100 mm
Package volume7 l
Package weight1.95 kg
Base uniteach
Package units20
Package contents–
UNSPSC39121522
BrandTELEMECANIQUE
VendorTESE DENMARK APS
