MOTOR CIRCUIT-BREAKER CL10, 16...22A, 286A

Name: MOTOR CIRCUIT-BREAKER CL10, 16...22A, 286A
Brand: SIEMENS
SKU: COX291

Product code

3720857

No product description available.

Product details

Overload release current setting16...22 A

Adjustment range undelayed short-circuit release286...286 A

Phase failure sensitivetrue

Switch off techniqueMagnetic

Rated operating voltage690...690 V

Rated permanent current Iu22 A

Rated operation power at AC-3, 230 V5,5 kW

Rated operation power at AC-3, 400 V11 kW

Type of electrical connection of main circuitScrew connection

Type of control elementOther

Device constructionBuilt-in device fixed built-in technique

With integrated auxiliary switchfalse

With integrated under voltage releasefalse

Number of poles3

Rated short-circuit breaking capacity lcu at 400 V, AC55 kA

SAPCOX291

PLC3720857

STK3720857

GTIN/EAN662643924374

Manufacturer part number3RV2021-4CA10

Vendor material number3RV2021-4CA10

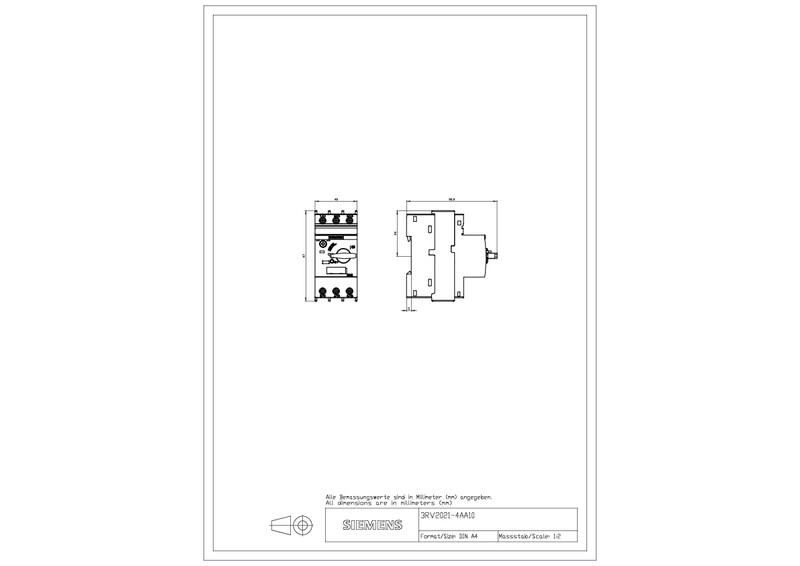

Package measurements (L x W x H)102 x 102 x 49 mm

Package volume0.51 l

Package weight0.37 kg

Base uniteach

Package units1

Package contents1

UNSPSC39121601

BrandSIEMENS

VendorSIEMENS OY
