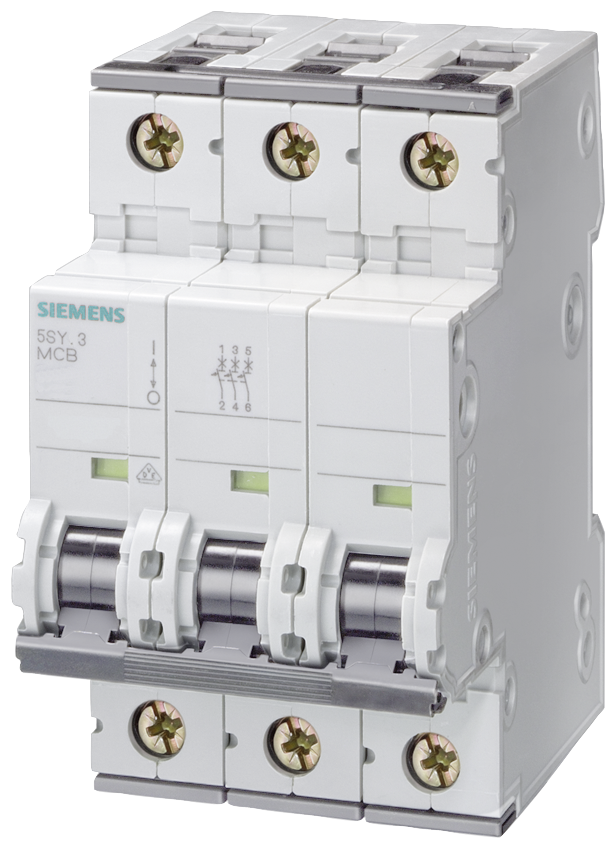

CIRCUIT BREAKER 3-POLE 2A C-CURVE
Product code
3223568
No product description available.
Product details
Technical specifications
Built-in depth70 mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current2 A
Rated voltage400 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V30 kA
Frequency50 ... 50 Hz
Current limiting class3
Concurrently switching neutral conductorfalse
Over voltage category3
Product codes
SAPGBN315
PLC3223568
STK3223568
GTIN/EAN4001869246925
Manufacturer part number5SY6302-7
Vendor material number3223568
Basic information
Package measurements (L x W x H)94 x 84 x 58 mm
Package volume0.458 l
Package weight0.495 kg
Base uniteach
Package units1
Package contents1
UNSPSC39121603
BrandSIEMENS
VendorSIEMENS OY
