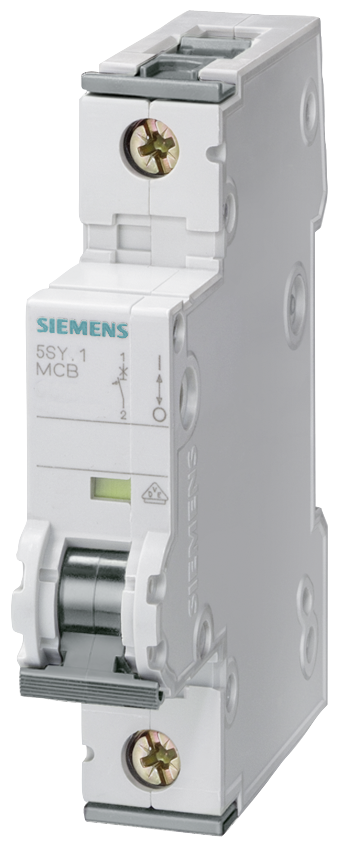

CIRCUIT BREAKER 1-POLE 16A C-CURVE
Product code
3223518
No product description available.
Product details
Technical specifications
Built-in depth70 mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current16 A
Rated voltage400 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 ... 50 Hz
Current limiting class3
Concurrently switching neutral conductorfalse
Over voltage category3
Product codes
SAPGBE217
PLC3223518
STK3223518
GTIN/EAN4001869246079
Manufacturer part number5SY6116-7
Vendor material number3223518
Basic information
Package measurements (L x W x H)93 x 83 x 21 mm
Package volume0.162 l
Package weight0.165 kg
Base uniteach
Package units1
Package contents1
UNSPSC39121603
BrandSIEMENS
VendorSIEMENS OY
