TIME RELAY RE22R2MWMR

Product code
2721069
Interval Timing Relay, 0,05s…300h, 24…240V AC/DC, 2C/O
Interval Timing Relay, 0,05s…300h, 24…240V AC/DC, 2C/O. range of product: Zelio Time - product or component type: modular timing relay - discrete output type: relay - device short name: RE22 - nominal output current: 8 A. Benefits: Timer relays that are simply ingenious. Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.... Applications: - Industry and building: simple machine control panels, process control., Applications requiring frequent and simple adjustment of cycle times....

Product details

Technical specifications

Type of electric connectionScrew connection
Suitable for DIN rail (top hat rail) mountingtrue
Pluggable on auxiliary contact blockfalse
Function delay-on energizationfalse

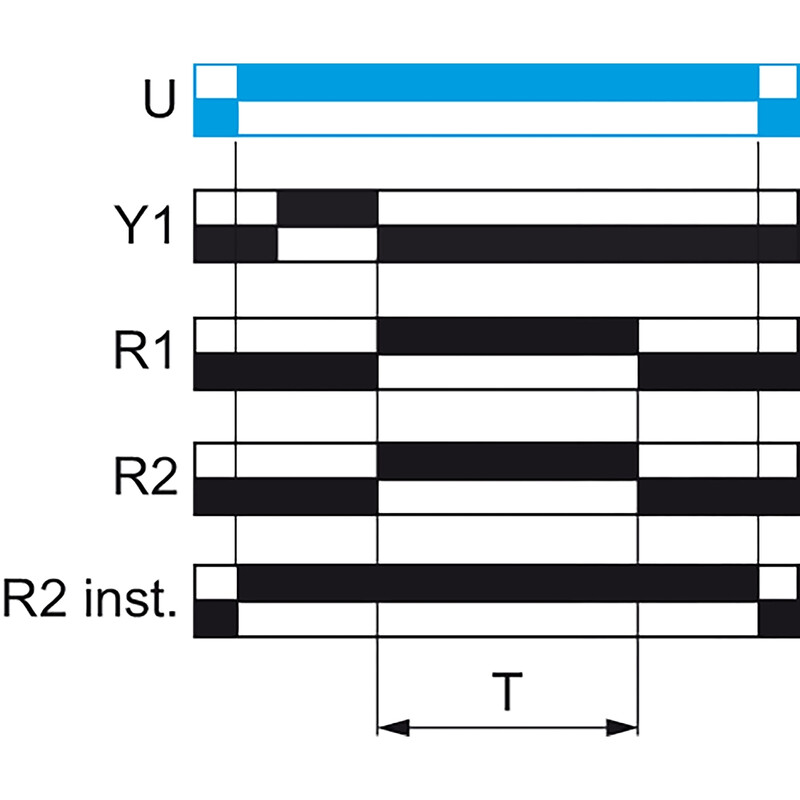

Function delay on de-energizationtrue
Function floating contact on energizationfalse
Function floating contact on de-energizationfalse
Function star-deltafalse
Function pulse shapingfalse
Function flashing, starting with pause, fixed timefalse
Function flashing, starting with pulse, fixed timefalse
Clock function, starting with pause, variablefalse
Clock function, starting with pulse, variablefalse
Time range0.05 ... 1080000 s
Remote operation possiblefalse

Product codes

SAPCCI463
PLC2721069
STK2721069
GTIN/EAN3606480792526
Manufacturer part numberRE22R2MWMR
Vendor material number2721069

Basic information

Package measurements (L x W x H)80 x 22 x 90 mm
Package volume0.158 l
Package weight0.12 kg
Base uniteach
Package units1 / 40
Package contents
UNSPSC39122325
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
