TELEMECAN.SWITCHES XACB9112

Product code
2319784

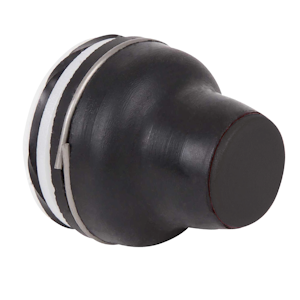

Booted head for pushbutton XAC-B, black, 4mm, -25..+70 °C
Booted head for pushbutton XAC-B, black, 4mm, -25..+70 °C. range of product: Harmony XAC - component name: XACB - marking: unmarked - operator additional information: booted - operating travel: 4 mm - cap/operator or lens colour: black - product compatibility: XENB...., XENC...., XEND...., XESB2011, XESD2201, XESD2241, XESD2251. Benefits: Simple, assured operator pendant controls. Designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards. They are not only simple and intuitive, but also very comfortable for the operator to use.... Applications: - Industry and service sector: hoists, travelling cranes..

Product details

Technical specifications

Colour buttonBlack/white/red
Number of command positions1
Construction type lensRound
Hole diameter22.5 mm
Type of buttonHigh
Suitable for illuminationfalse
With protective coverfalse
Labelledfalse
Switching function latchingfalse
Spring-returntrue
With front ringtrue
Material front ringPlastic
Colour front ringBlack
Degree of protection (IP), front sideIP65/IP67
With protection coverfalse

Product codes

SAPAIW245
PLC2319784
STK2319784
GTIN/EAN3389110640823
Manufacturer part numberXACB9112
Vendor material number2319784

Basic information

Package measurements (L x W x H)180 x 130 x 30 mm
Package volume0.702 l
Package weight0.007 kg
Base uniteach
Package units1 / 10 / 200
Package contents
UNSPSC39122216
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
