SURGE ARRESTER EQUIPP. IQUICK CARTRIDGE N-350
Product code
5815220

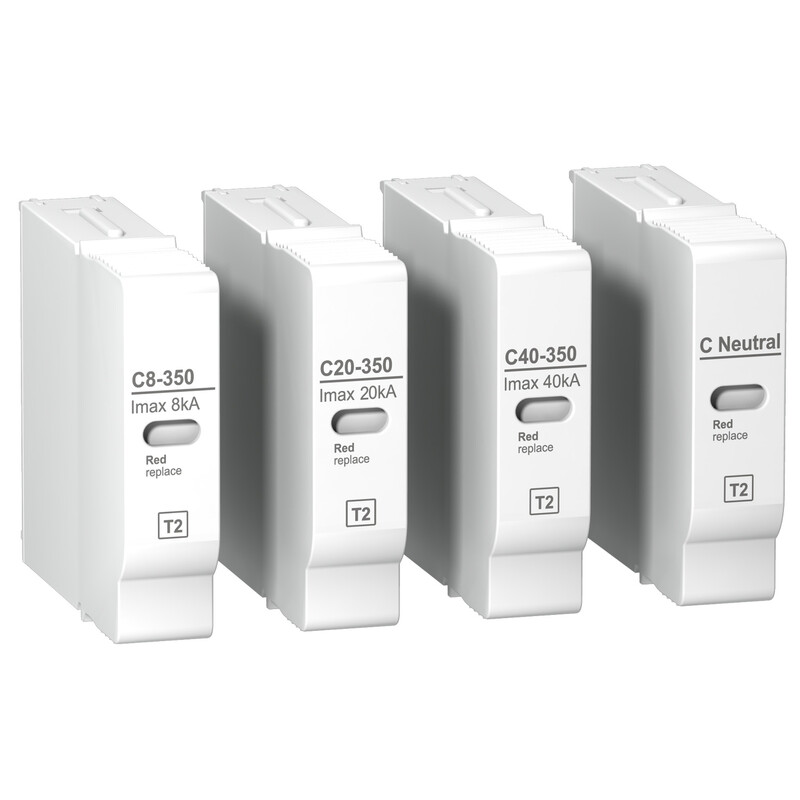

Cartridge C neutral-350 for surge arrester iQuick PRD
Cartridge C neutral-350 for surge arrester iQuick PRD. product or component type: cartridge - device short name: C neutral-350 - surge arrester type: electrical distribution network. Benefits: .. Applications: ..
Product details
Technical specifications
System configuration DCfalse
System configuration ITfalse
System configuration TNtrue
System configuration TN-Cfalse
System configuration TN-C-Sfalse
System configuration TN-Sfalse
System configuration TTtrue
System configuration otherfalse
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)65 kA
Nominal voltage AC230 V
Nominal voltage DC0 V
Max. continuous voltage AC264 V
Max. continuous voltage DC0 V
Max. PV-voltage0 V
Product codes
SAPANS587
PLC5815220
STK5815220
GTIN/EAN3606480387166
Manufacturer part numberA9L16313
Vendor material number5815220
Basic information
Package measurements (L x W x H)67 x 97 x 20 mm
Package volume0.13 l
Package weight0.059 kg
Base uniteach
Package units1 / 12 / 108
Package contents–
UNSPSC39121610
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
