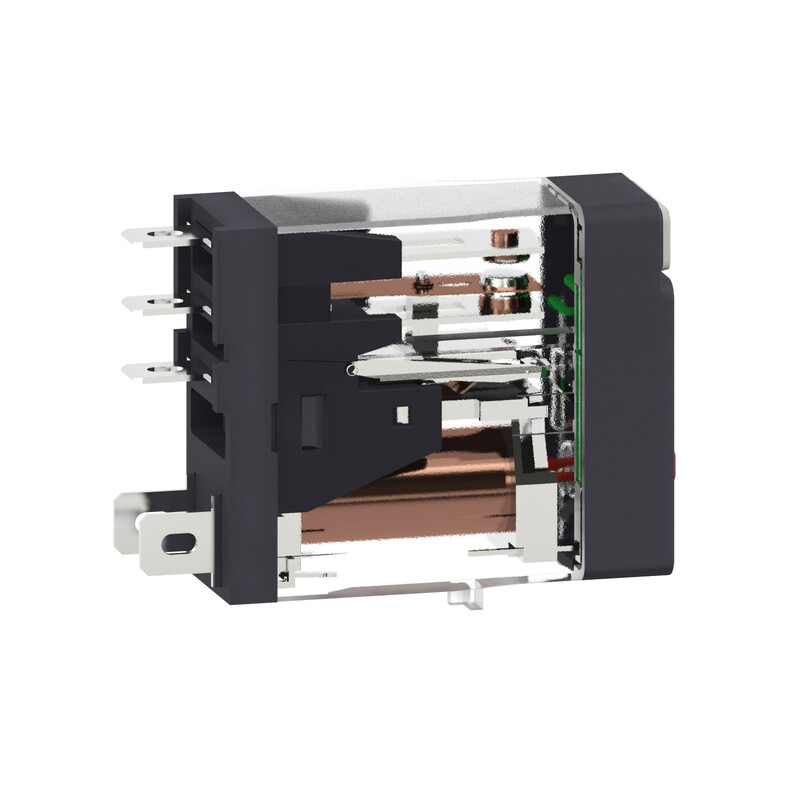

PLUG-IN RELAY ZELIO RXG 24VAC 1C/O 10A LOCK LED
Product code
2720952
Interface plug-in relay, Zelio RXG, 1C/O standard, 24VAC-10A-with LTB and LED
Interface plug-in relay, Zelio RXG, 1C/O standard, 24VAC-10A-with LTB and LED. range of product: Zelio Relay - series name: interface relay - product or component type: plug-in relay - device short name: RXG - contacts type and composition: 1 C/O. Benefits: A new offer image!. Due to its compact size, Zelio can be used to multiply the functions in electrical enclosures. Simplicity, no adjustment required for standard applications. Ease of integration in an existing device.... Applications: Market target, Industrial machines, Machines and building equipement, HVACApplications, Simple hard-wired logic control system cycles, Extra feature for industrial PLCs..
Product details
Technical specifications
Type of electric connectionFlat plug-in connection
Complete with socketfalse
With detachable clampsfalse
With LED indicationtrue
Rated control supply voltage AC 50 Hz24 ... 24 V
Rated control supply voltage AC 60 Hz24 ... 24 V
Rated control supply voltage DC0 ... 0 V
Voltage type for actuatingAC/DC
Drive, polarizationPolarity free
Drive, switching attitudeMono stable
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact1
Type of switch contactSingle contact
With forced-guided contactsfalse
Product codes
SAPCBW348
PLC2720952
STK2720952
GTIN/EAN3606480688669
Manufacturer part numberRXG12B7
Vendor material number2720952
Basic information
Package measurements (L x W x H)42 x 30 x 13 mm
Package volume0.016 l
Package weight0.022 kg
Base uniteach
Package units1 / 10 / 200 / 6400
Package contents–
UNSPSC39122325
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
