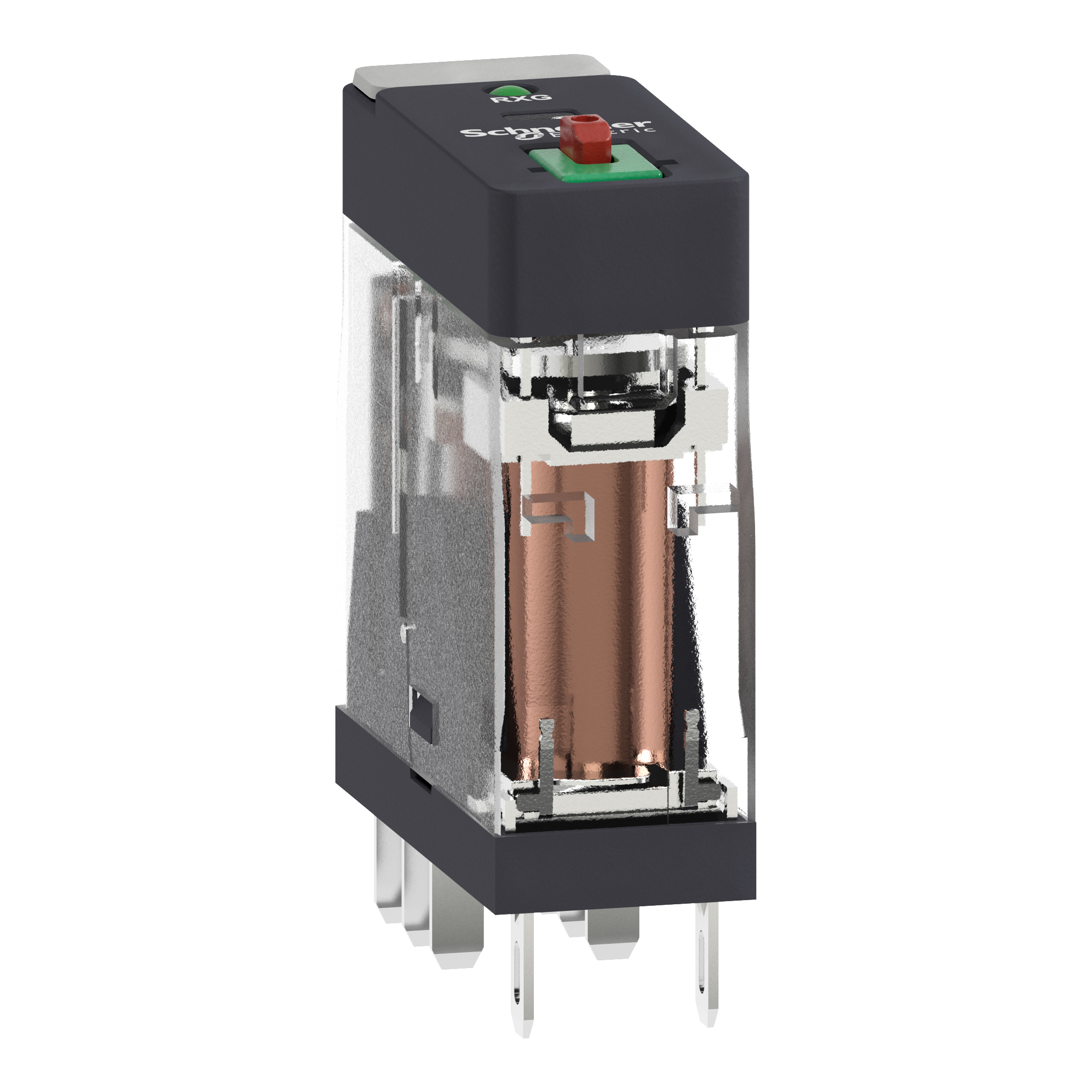

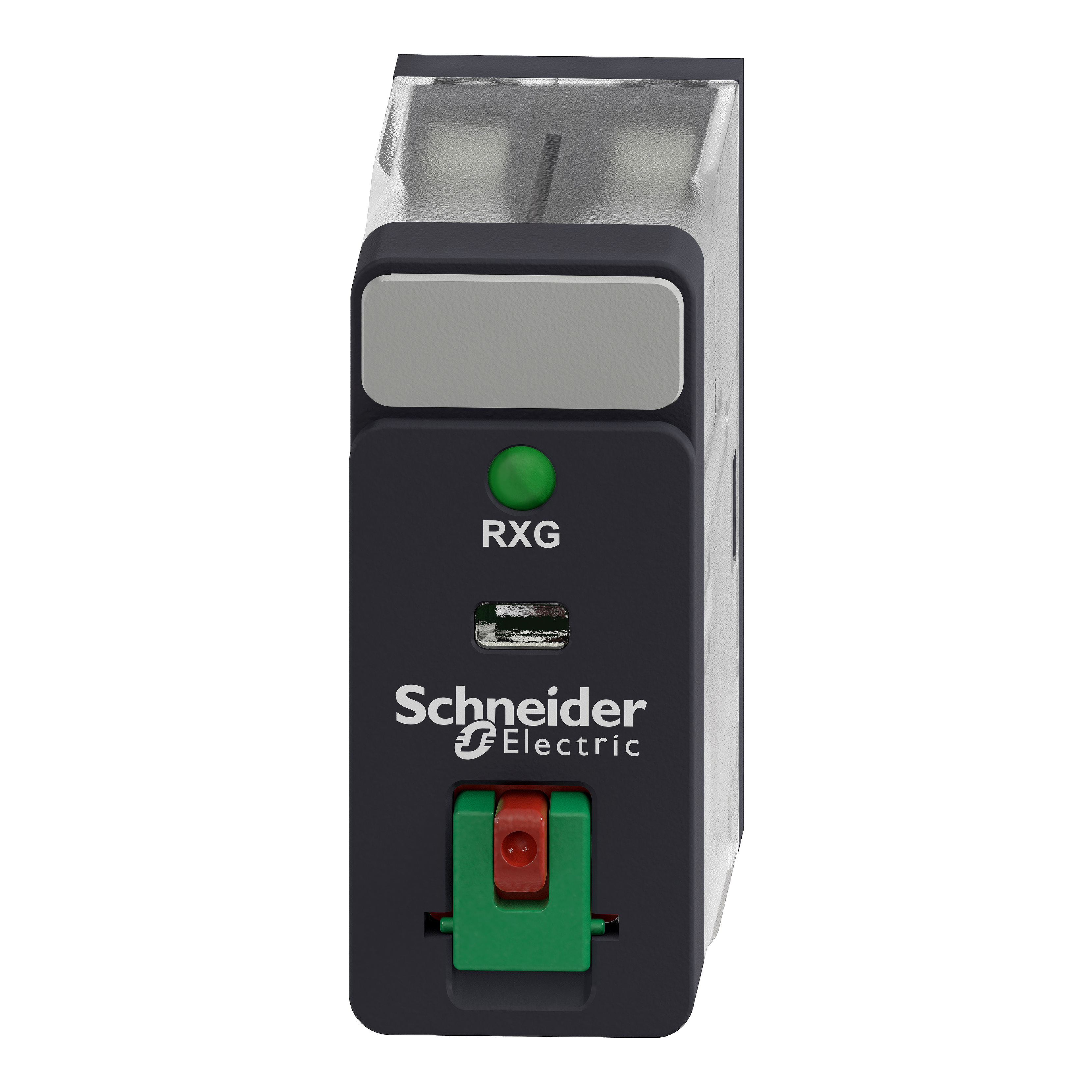

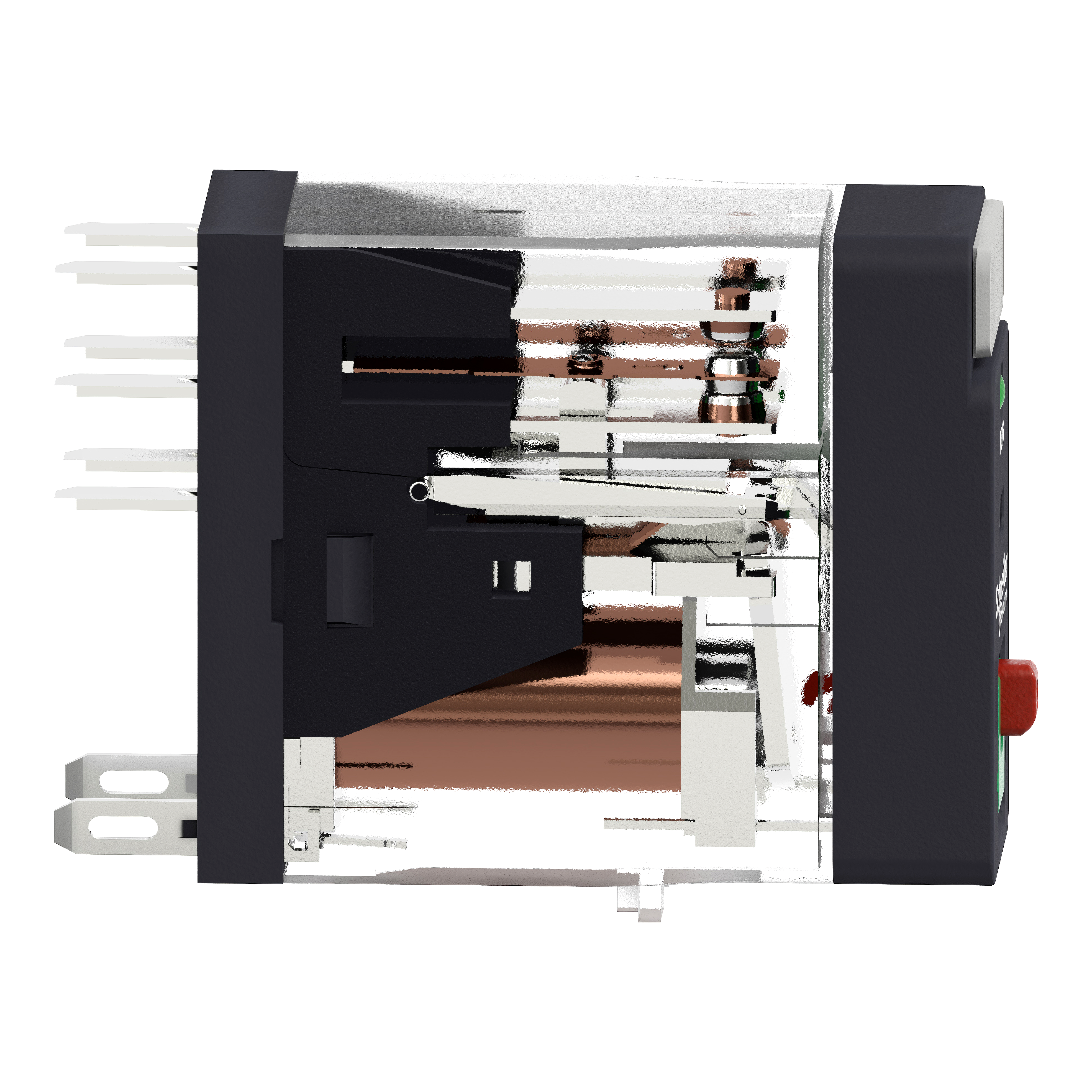

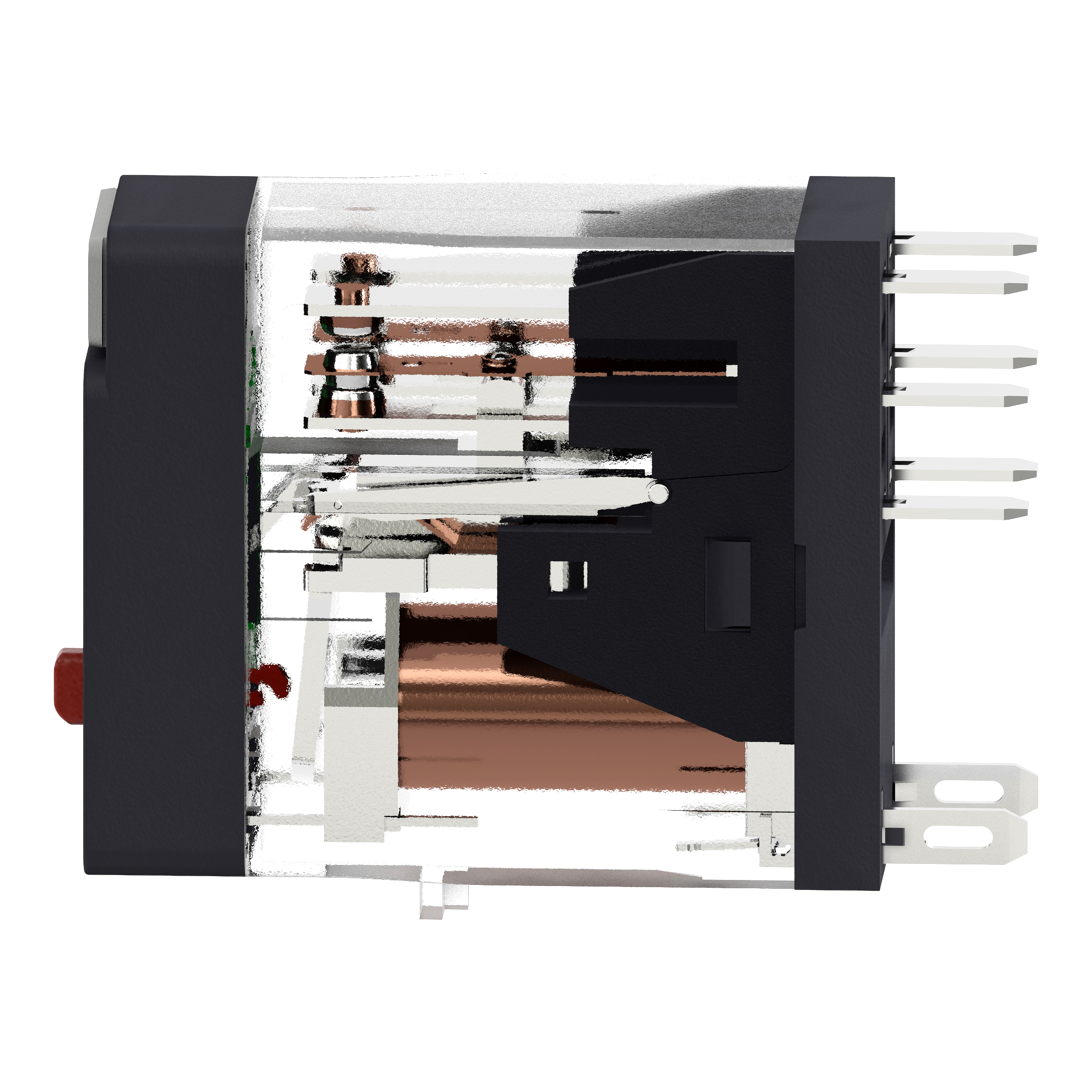

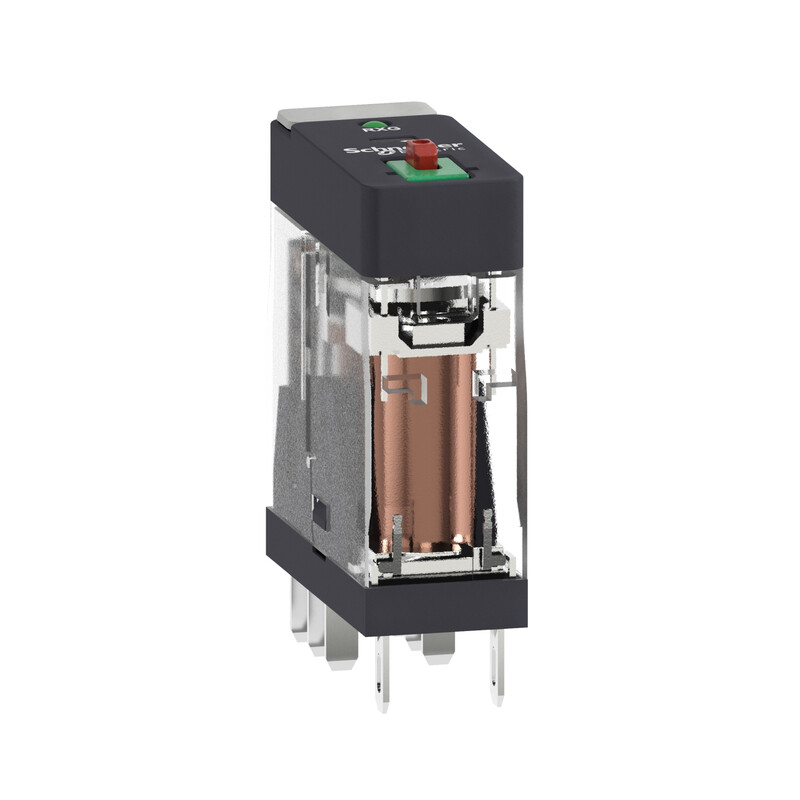

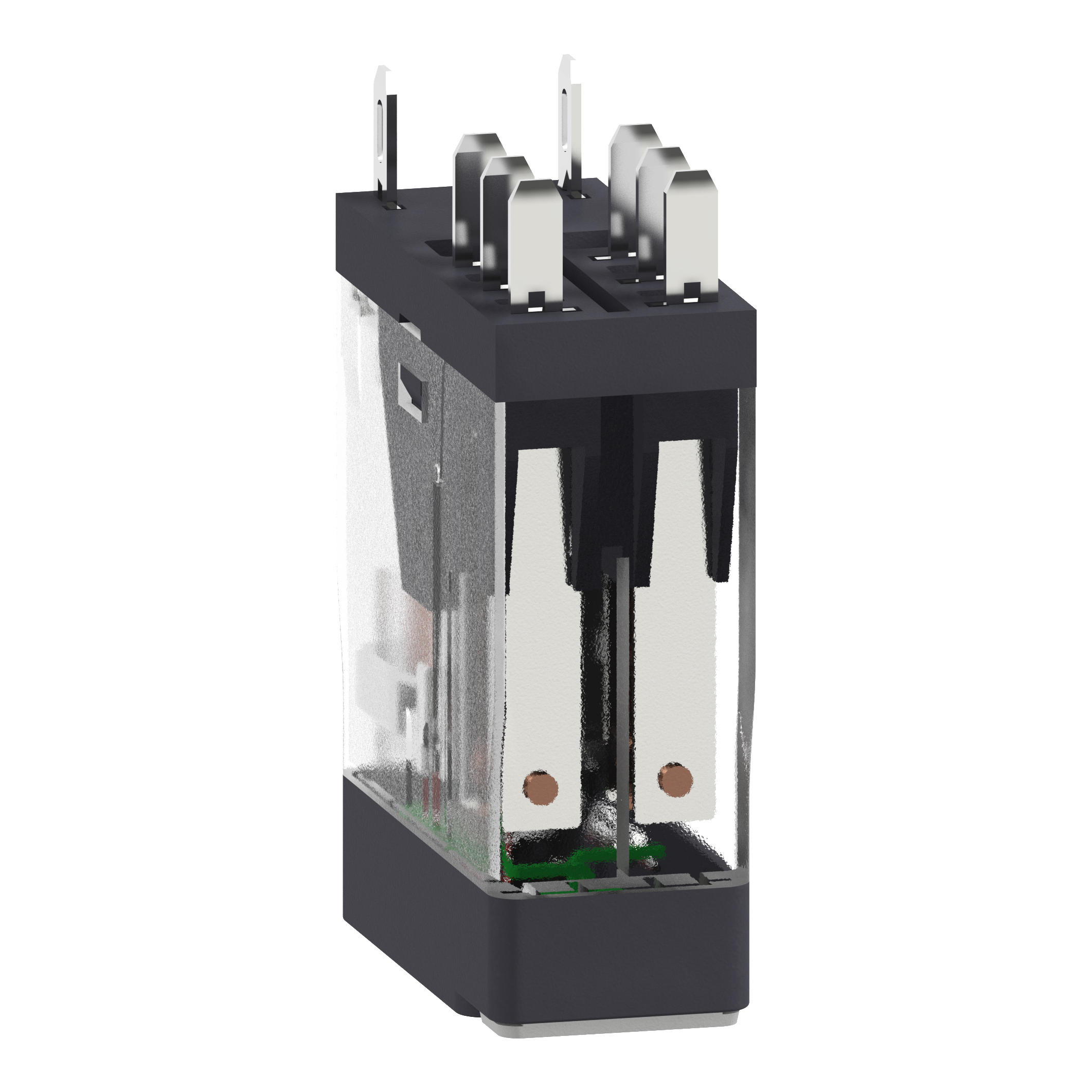

PLUG-IN RELAY 220VAC 2C/O 5A LOCKABLE LED

Product code
2721003
Interface plug-in relay, Zelio RXG, 2C/O standard-220VAC-5A, with LTB and LED
Interface plug-in relay, Zelio RXG, 2C/O standard-220VAC-5A, with LTB and LED. range of product: Zelio Relay - series name: interface relay - product or component type: plug-in relay - device short name: RXG - contacts type and composition: 2 C/O. Benefits: A new offer image!. Due to its compact size, Zelio can be used to multiply the functions in electrical enclosures. Simplicity, no adjustment required for standard applications. Ease of integration in an existing device.... Applications: Market target, Industrial machines, Machines and building equipement, HVACApplications, Simple hard-wired logic control system cycles, Extra feature for industrial PLCs..

Product details

Technical specifications

Type of electric connectionFlat plug-in connection
Complete with socketfalse
With detachable clampsfalse
With LED indicationtrue
Rated control supply voltage AC 50 Hz220 ... 220 V
Rated control supply voltage AC 60 Hz220 ... 220 V
Voltage type for actuatingAC
Drive, polarizationPolarity free
Drive, switching attitudeMono stable
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact2
Type of switch contactSingle contact
With forced-guided contactsfalse
Nominal current5 A

Product codes

SAPCBW264
PLC2721003
STK2721003
GTIN/EAN3606480689130
Manufacturer part numberRXG22M7
Vendor material number2721003

Basic information

Package measurements (L x W x H)29 x 13 x 36 mm
Package volume0.014 l
Package weight0.021 kg
Base uniteach
Package units10 / 200 / 6400
Package contents
UNSPSC39122325
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
