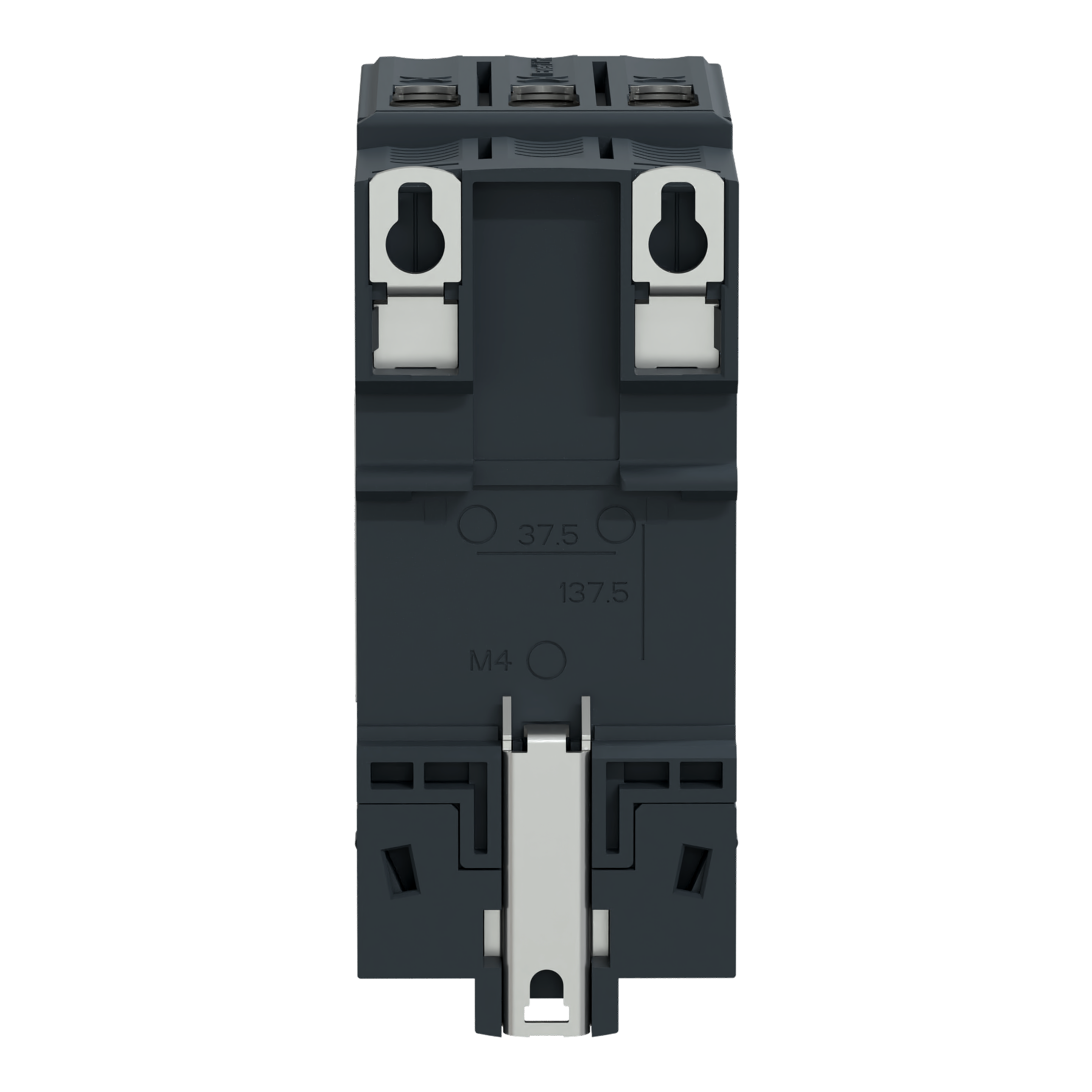

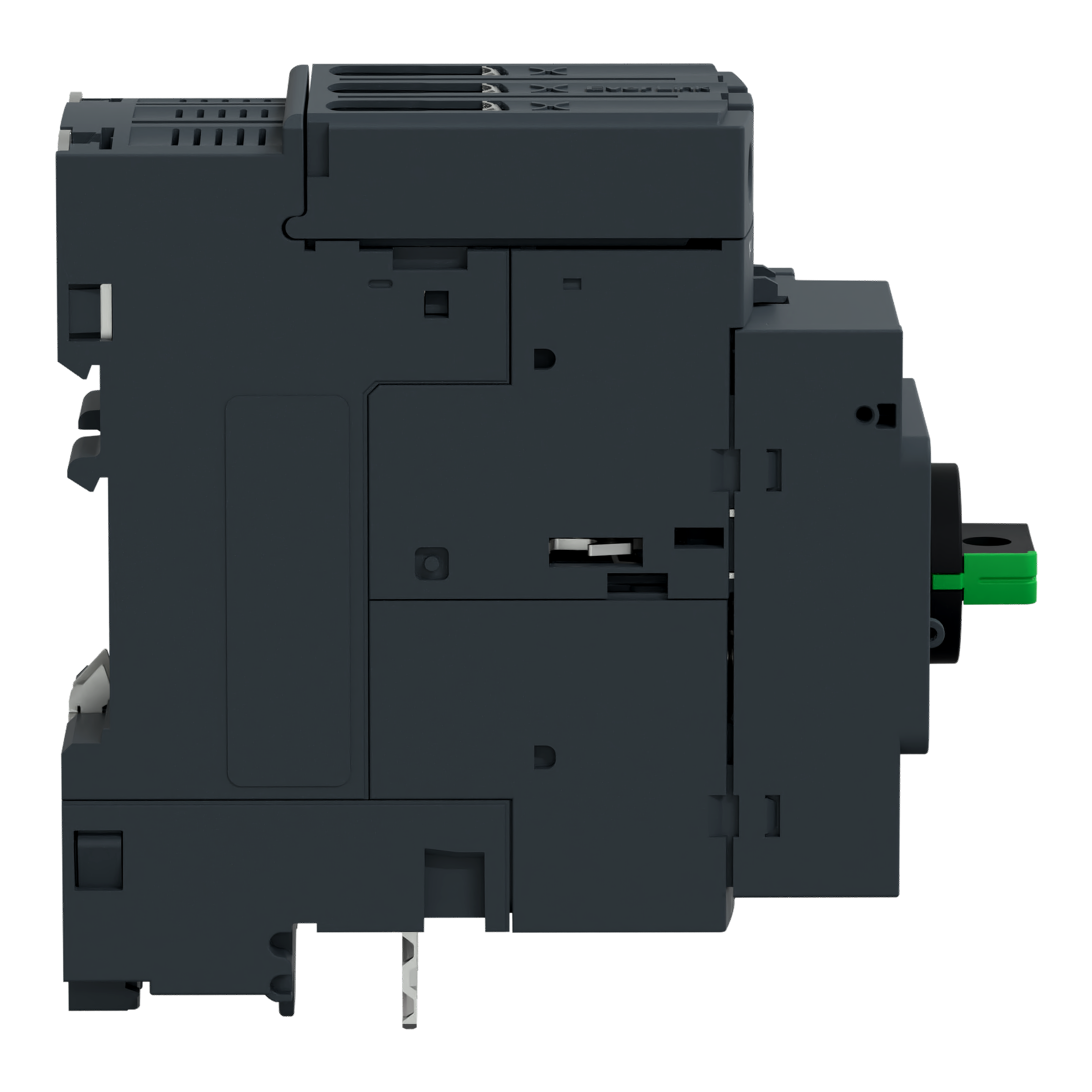

MOTOR CIRCUIT BREAKER GV3P651 48-65A

TeSys GV3-Circuit breaker-thermal-magnetic-48…65A-EverLink BTR/direct connectors. range: TeSys - product name: TeSys GV3 - device short name: GV3P - product or component type: circuit breaker - device application: motor - network type: AC - utilisation category: AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2 - breaking capacity: 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 - [Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 - magnetic tripping current: 910 A. Benefits: A stronger, safer, and long-term connection. Designed with the new and ingenious, EverLink* patented, power terminal system, TeSys GV3 circuit-breaker provides a more reliable connection quality: the tightening pressure applied to the cables remain stable, strong and long-lasting even under tough conditions. Common additive parts to GV2 and GV3 ranges provide simplicity and significant installation time saving.... Applications: - Industry, infrastructures, buildings: Used for motor control and protection, complying with IEC 947-2 and IEC 947-4-1 standards... *Schneider patent....
