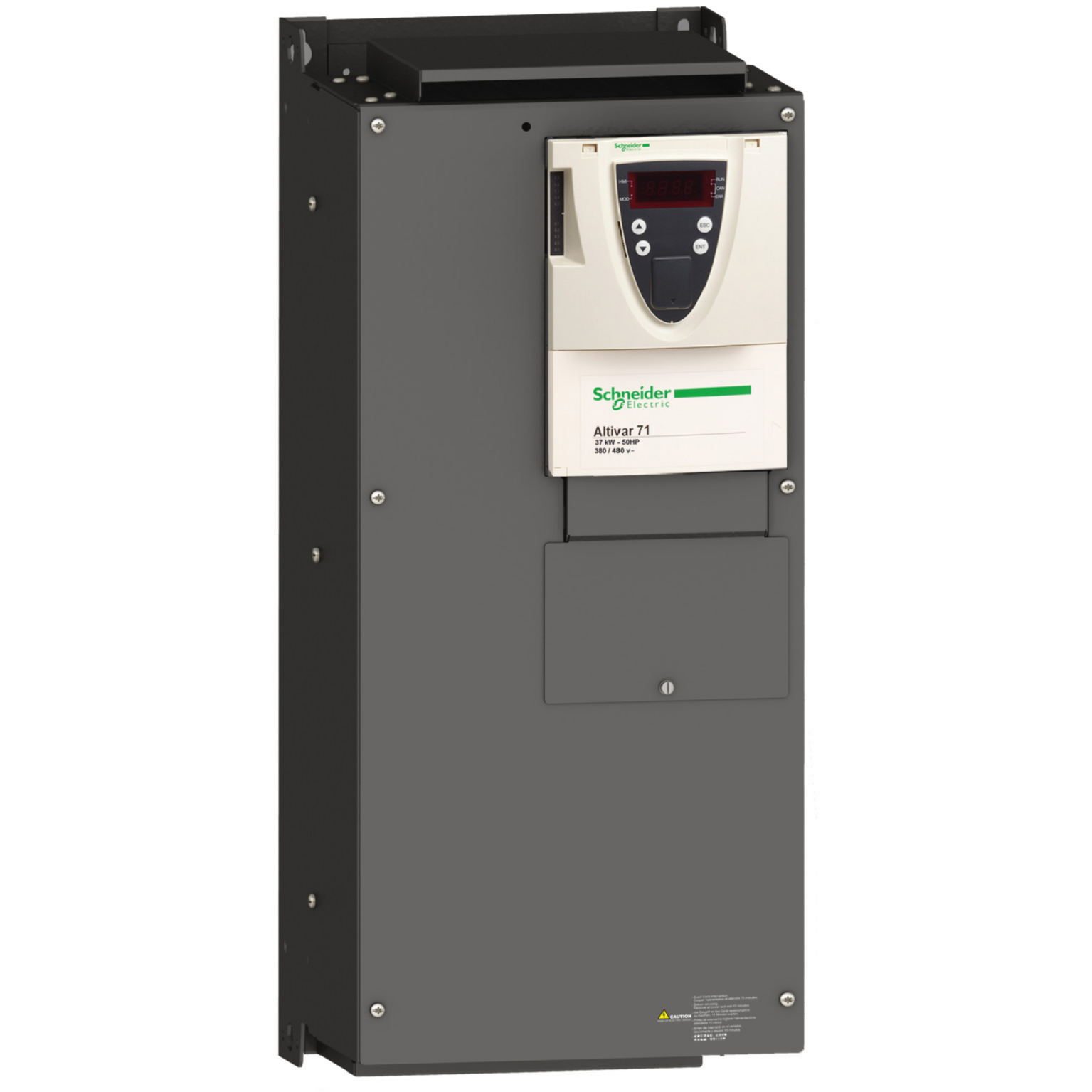

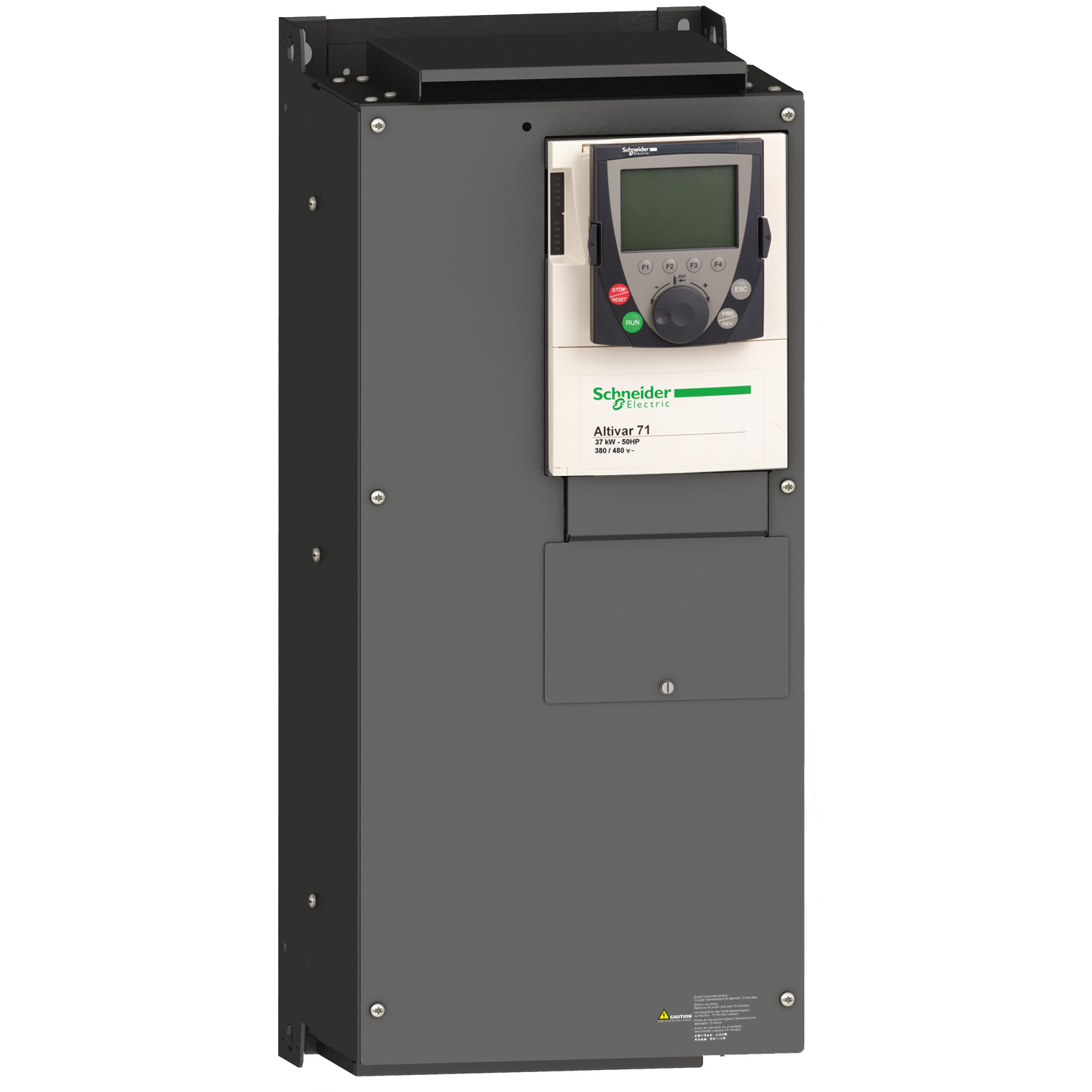

FREQUENCY CONVERTER IP20 ATV71HD22N4Z/22KW 380-480V

Variable speed drive ATV71, 22kW-30HP, 480V, EMC filter-graphic terminal. range of product: Altivar 71 - product or component type: variable speed drive - component name: ATV71 - network number of phases: 3 phases - line current: 42 A for 480 V 3 phases 22 kW / 30 hp, 50 A for 380 V 3 phases 22 kW / 30 hp - EMC filter: integrated - assembly style: with heat sink - nominal output current: 40 A at 4 kHz 460 V 3 phases 22 kW / 30 hp, 48 A at 4 kHz 380 V 3 phases 22 kW / 30 hp - maximum transient current: 72 A for 60 s 3 phases 22 kW / 30 hp, 79.2 A for 2 s 3 phases 22 kW / 30 hp - output frequency: 0.1...599 kHz - nominal switching frequency: 4 kHz - switching frequency: 1...16 kHz adjustable, 4...16 kHz with derating factor - asynchronous motor control profile: ENA (Energy adaptation) system for unbalanced loads, flux vector control (FVC) with sensor (current vector), sensorless flux vector control (SFVC) (voltage or current vector), voltage/frequency ratio (2 or 5 points). Benefits: Make way for evolution!. Unique range up to 630 kW, exceptional performance, advanced functions. Open to all communication networks, applications, users. Altivar 71 provides ingenious solutions for all your particular requirements.... Applications: High performance applications (constant torque):, Material handling, Hoisting, Wood machines, Process machines, Textile machines, Packaging..
