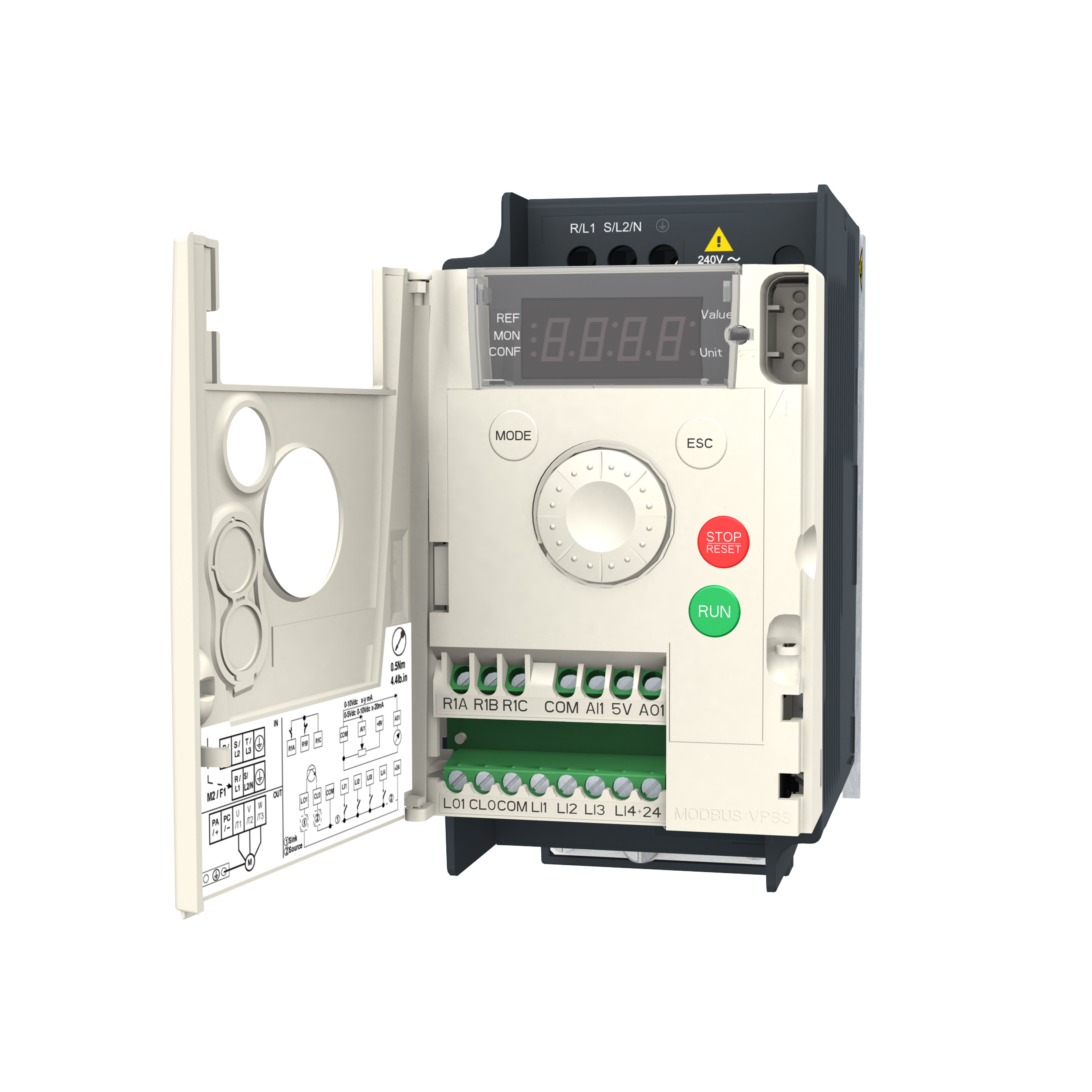

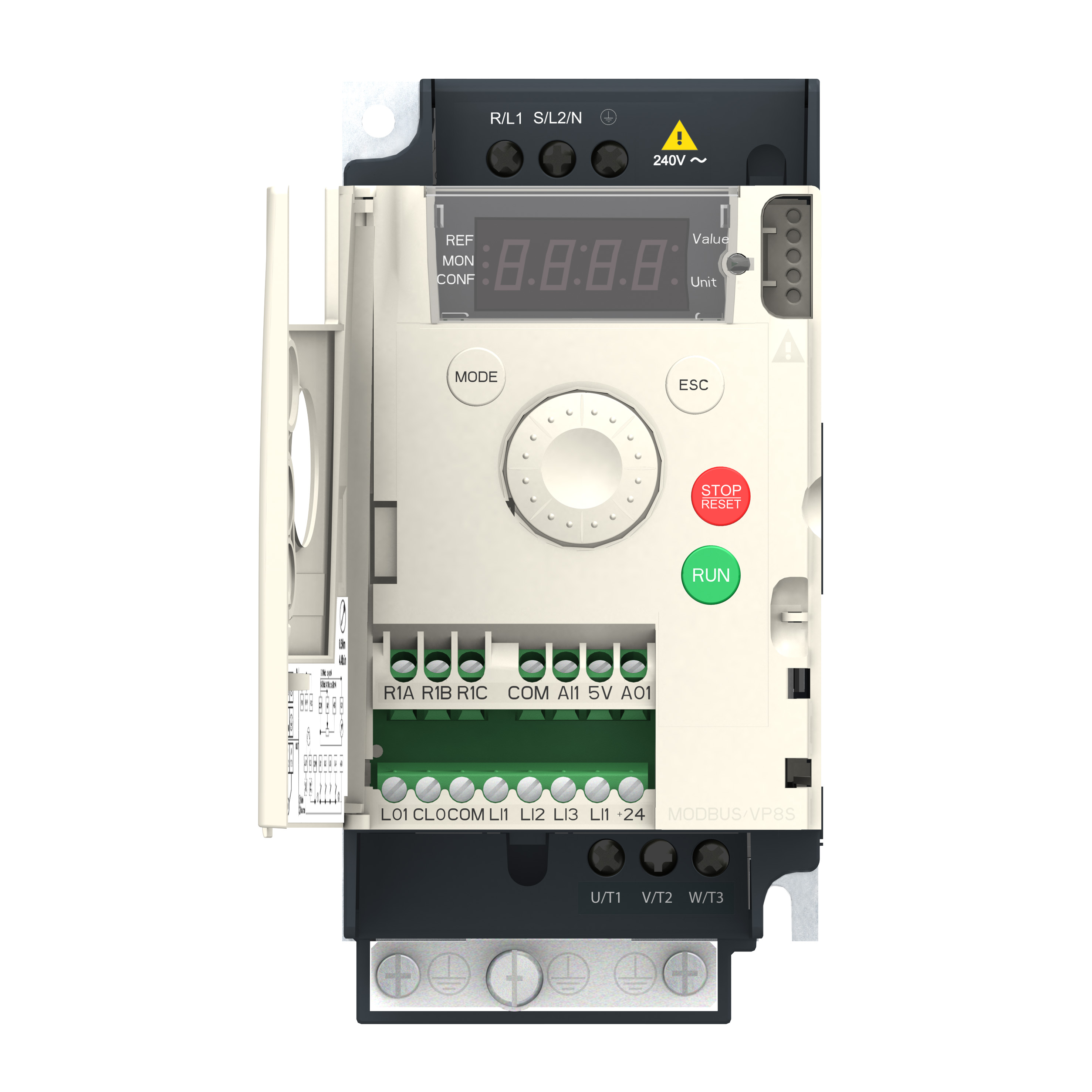

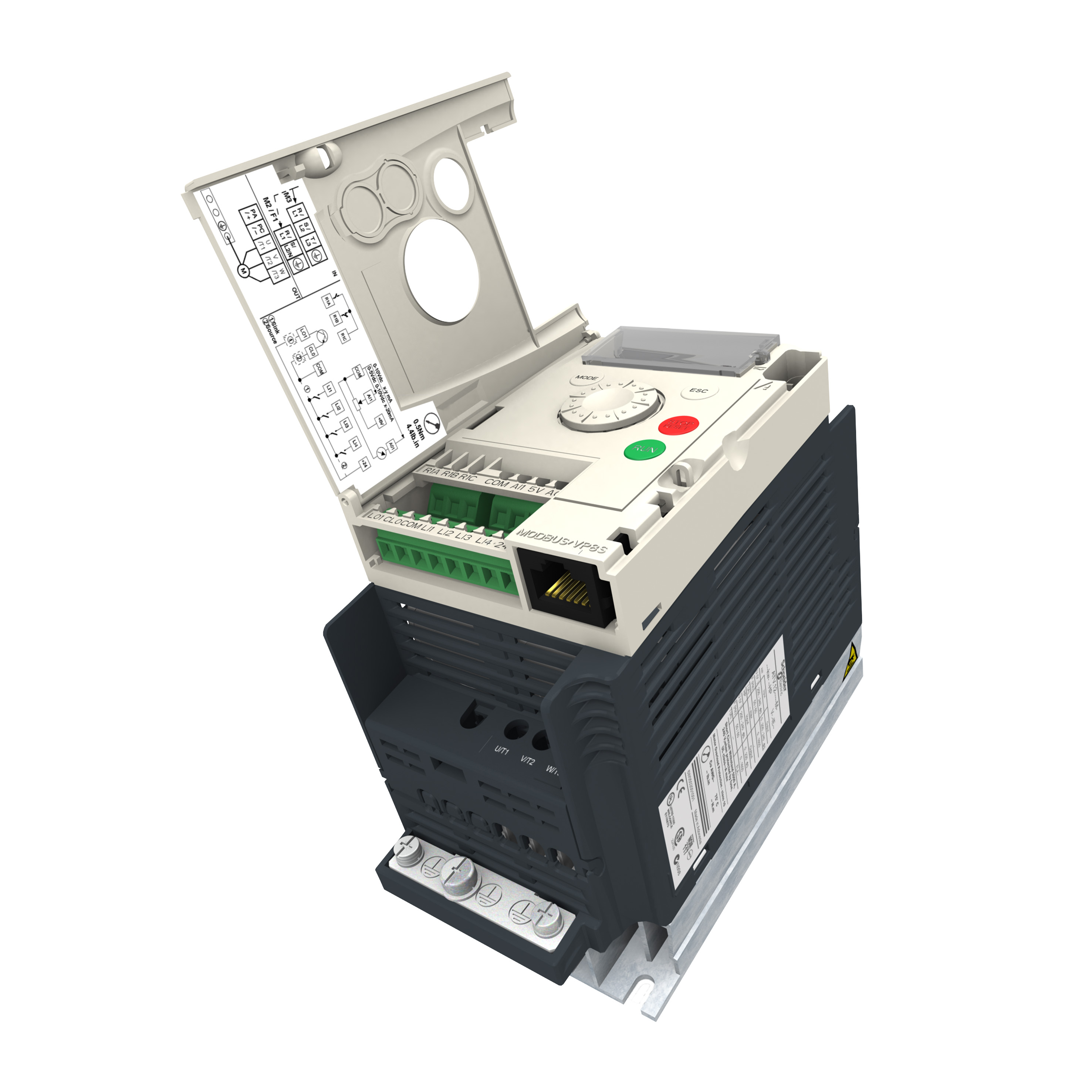

FREQUENCY CONVERTER IP20 ATV12H037M2/0,37KW 240VAC

Variable speed drive ATV12, 0,37kW, 0,55hp, 200..240V, 1ph, with heat sink. range of product: Altivar 12 - product or component type: variable speed drive - product destination: asynchronous motors - assembly style: with heat sink - component name: ATV12 - quantity per set: set of 1 - EMC filter: integrated - built-in fan: without - network number of phases: single phase - line current: 4.9 A at 240 V, 5.9 A at 200 V - asynchronous motor control profile: quadratic voltage/frequency ratio, sensorless flux vector control, voltage/frequency ratio (V/f) - noise level: 0 dB. Benefits: .. Applications: .. Benefits: Discreet in size but big on performance !. Variable speed drives for small machines with three-phase 240 V asynchronous motor.. 0,18 to 0,75 kW, 120 V single-phase power supply. 0,18 to 2,2 kW, 240 V single-phase power supply. 0,18 to 4 kW, 240 V three-phase power supply, Can be configured in its packaging, Quick start option requiring no adjustment, Intuitive navigation, Even more compact, Category 1 EMC filter, Local control on the front panel, Modbus serial link, Resistant to harsh operating environments.. Applications: - Simple machines for industry. Material handling (small conveyors, etc.). Packaging (small labelling machines, small bagging machines). Pumping applications (suction pumps, centrifugal pumps, circulating pumps, etc.). Machines fitted with fans (air or smoke extraction, plastic film making machines, ovens, boilers, etc.)., Simple consumer machines. Handling (access barriers, rotating advertising hoardings). Health (medical beds, running machines). Food and drink (mills, kneading machines, mixers, etc.)., Other types of application. Food and drink (battery farming, greenhouses, etc.). Mobile machines and small devices equipped with a power socket. Applications which traditionally use other solutions (2-speed DC motors, mechanical drives, etc.)..
