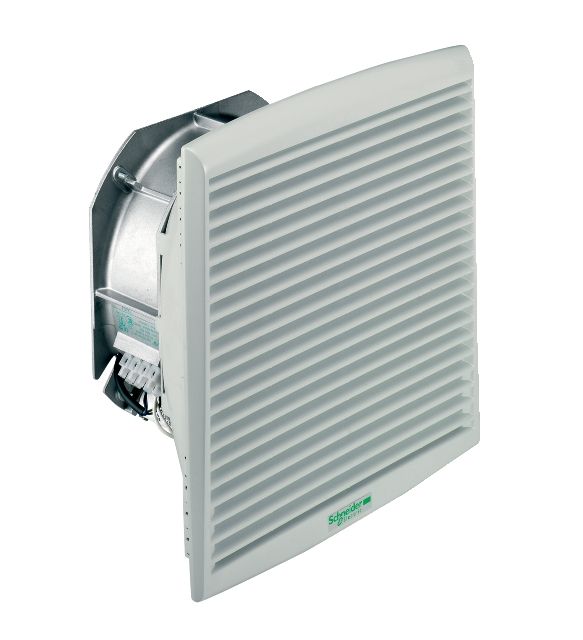

FAN NSYCVF560M230PF

Product code
3460553
ClimaSys forced vent. IP54, 560m3/h, 230V, with outlet grille and filter G2
ClimaSys forced vent. IP54, 560m3/h, 230V, with outlet grille and filter G2. range of product: ClimaSys CV - range: ClimaSys - product name: CV - product or component type: fan - range compatibility: Prisma G, Prisma P - type of ventilation filter: standard - air flow: free flow rate with standard filter : 562 m3/h at 50 Hz, free flow rate with standard filter : 586 m3/h at 60 Hz. Benefits: .. Applications: .. Benefits: .. Applications: .. Benefits: - Ensures safety and reliability of electrical installations: Peace of mind, Switchboard configurations tested: Compliant, Optimised switchboards: Flexibility, Can be upgraded easily at any time without its original performance being affected: Simplicity.. Applications: - Industrial buildings, Tertiary buildings eg educational establishments and hospitals..

Product details

Technical specifications

Number of fans1
Operating voltage AC 50 Hz230 ... 230 V
Operating voltage AC 60 Hz230 ... 230 V
Operating voltage DC0 ... 0 V
Voltage typeAC
Suitable for wall built-infalse
Built as slide-in ventilatortrue
Air circulatortrue
Roof ventilatorfalse
With filtertrue
With protective covertrue
Volume flow, freeblowing562 m³/h
Rated power68 W
EMC-versionfalse
Noise emission59 dB(A)

Product codes

SAPAMA652
PLC3460553
STK3460553
GTIN/EAN3606480151323
Manufacturer part numberNSYCVF560M230PF
Vendor material number3460553

Basic information

Package measurements (L x W x H)325 x 345 x 230 mm
Package volume25.789 l
Package weight3.48 kg
Base uniteach
Package units1 / 72
Package contents
UNSPSC40101608
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
