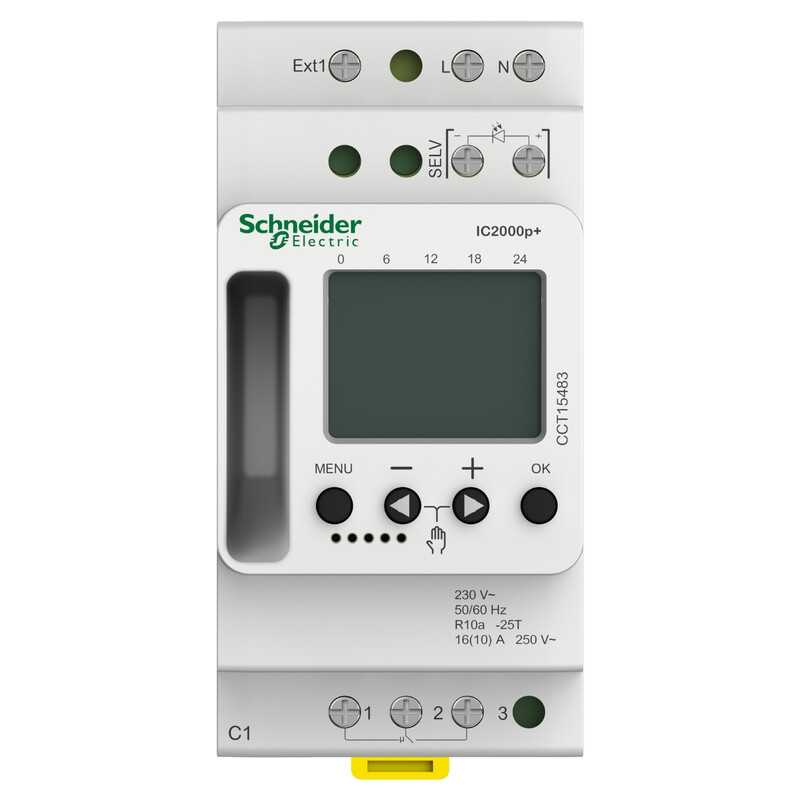

DIGITAL TIMER ACTI 9 IC2000P+ (2 - 2000 LX)
Product code
2609916
No product description available.
Product details
Technical specifications
Rated voltage230 V
Rated frequency50 ... 60 Hz
Max. incandescent lamp load2600 W
Max. load fluorescent lamp2300 VA
Max. load fluorescent lamp (Duo circuit)2300 VA
Max. load fluorescent lamp (parallel compensated)730 VA
Max. switching current (cos phi = 0.6)10 A
Rated switch current16 A
Adjustment range brightness value2 ... 2000 lx
With programmable overnight shutofftrue
Push button inputtrue
Max. conductor length light sensor50 m
Protection class light sensorII
Mounting method light sensorWall surface mounted
Mounting methodDIN rail
Product codes
SAPCKP119
PLC2609916
STK2609916
GTIN/EAN3606489524586
Manufacturer part numberCCT15483
Vendor material number2609916
Basic information
Package measurements (L x W x H)93 x 45 x 67 mm
Package volume0.28 l
Package weight0.245 kg
Base uniteach
Package units1 / 22 / 528
Package contents–
UNSPSC39122208
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC ASENNUSKALUST
