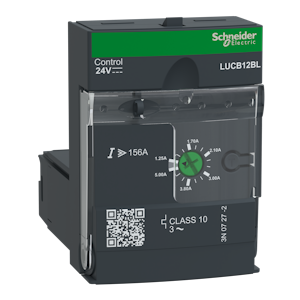

CONTROL UNIT ADVANCED 3-12A
Product code
3782698
The product cannot be delivered from web store
Supplier
No product description available.
Product details
Technical specifications
Type of motor protectionElectronic release
Number of poles3
Rated permanent current Iu12 A
Overload release current setting3 ... 12 A
Short-circuit release functionUndelayed
With ground fault protection functiontrue
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated control supply voltage AC 50 Hz0 ... 0 V
Rated control supply voltage AC 60 Hz0 ... 0 V
Rated control supply voltage DC24 ... 24 V
Initial value of the undelayed short-circuit release - setting range156 A
End value adjustment range undelayed short-circuit release156 A
Voltage type for actuatingDC
Product codes
SAPADG267
PLC3782698
STK3782698
GTIN/EAN3389110364095
Manufacturer part numberLUCB12BL
Vendor material numberLUCB12BL
Basic information
Package measurements (L x W x H)88 x 82 x 50 mm
Package volume0.361 l
Package weight0.124 kg
Base uniteach
Package units1 / 20
Package contentsâ
UNSPSC39122325
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
