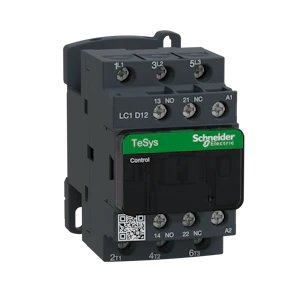

CONTACTOR TESYS 12A/AC3 3NO 1NO+1NC 230VAC

Name: CONTACTOR TESYS 12A/AC3 3NO 1NO+1NC 230VAC
Brand: SCHNEIDER ELECTRIC
SKU: CFO963

Product code

3782555

No product description available.

Product details

Rated control supply voltage AC 50 Hz230 ... 230 V

Rated control supply voltage AC 60 Hz230 ... 230 V

Rated control supply voltage DC0 ... 0 V

Voltage type for actuatingAC

Number of normally closed contacts as main contact0

Number of normally open contacts as main contact3

Type of electrical connection of main circuitScrew connection

Rated operation current Ie at AC-1, 400 V25 A

Rated operation current Ie at AC-3, 400 V12 A

Rated operation power at AC-3, 400 V5.5 kW

Rated operation current Ie at AC-4, 400 V7.5 A

Rated operation power at AC-4, 400 V3 kW

Number of auxiliary contacts as normally open contact1

Number of auxiliary contacts as normally closed contact1

Modular versionfalse

SAPCFO963

PLC3782555

STK3782555

GTIN/EAN3389110349313

Manufacturer part numberLC1D12P7TQ

Vendor material numberLC1D12P7TQ

Package measurements (L x W x H)0 x 0 x 0 mm

Package volume0.75 l

Package weight0.354 kg

Base uniteach

Package units24 / 384

Package contents–

UNSPSC39121529

BrandSCHNEIDER ELECTRIC

VendorSCHNEIDER ELECTRIC FINLAND OY
