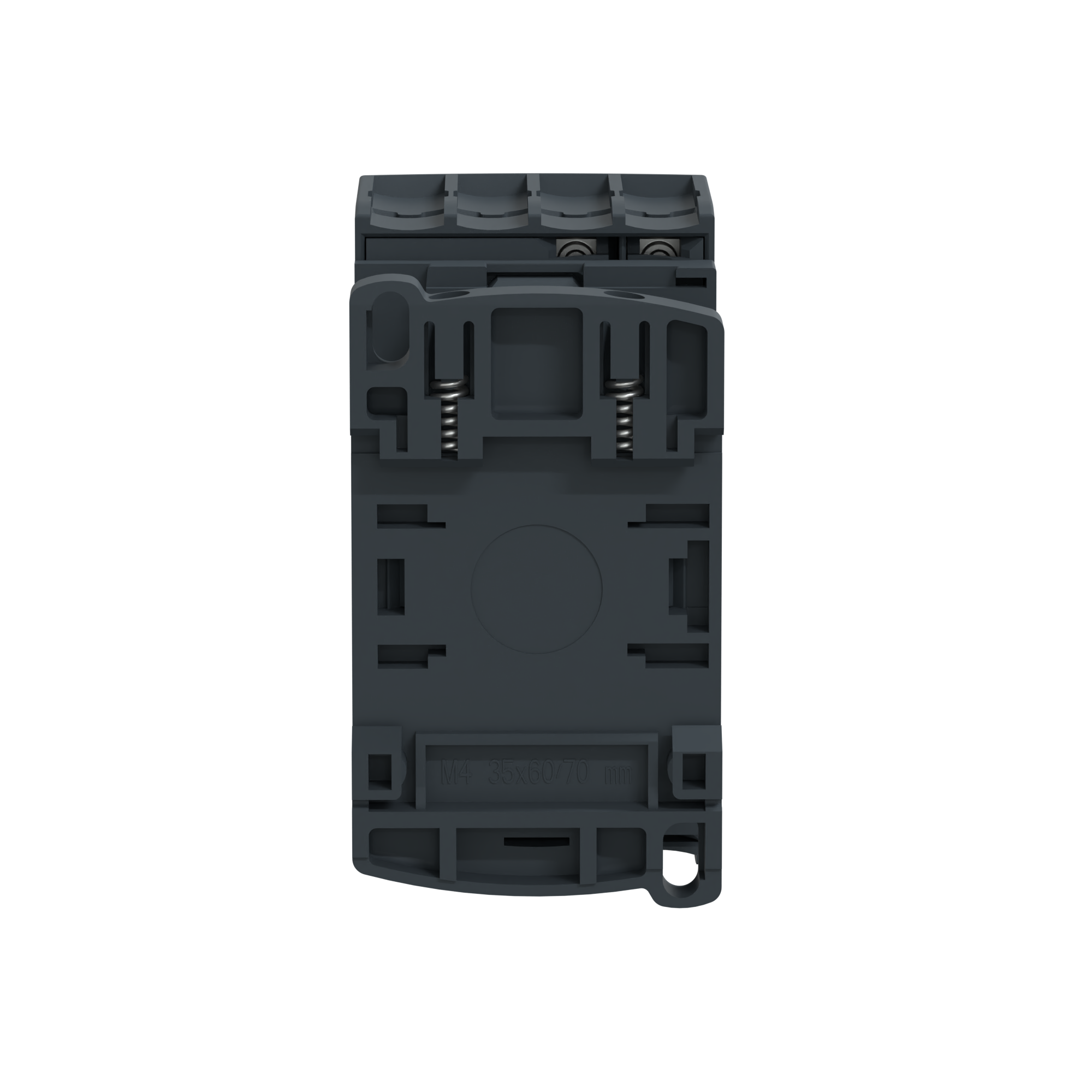

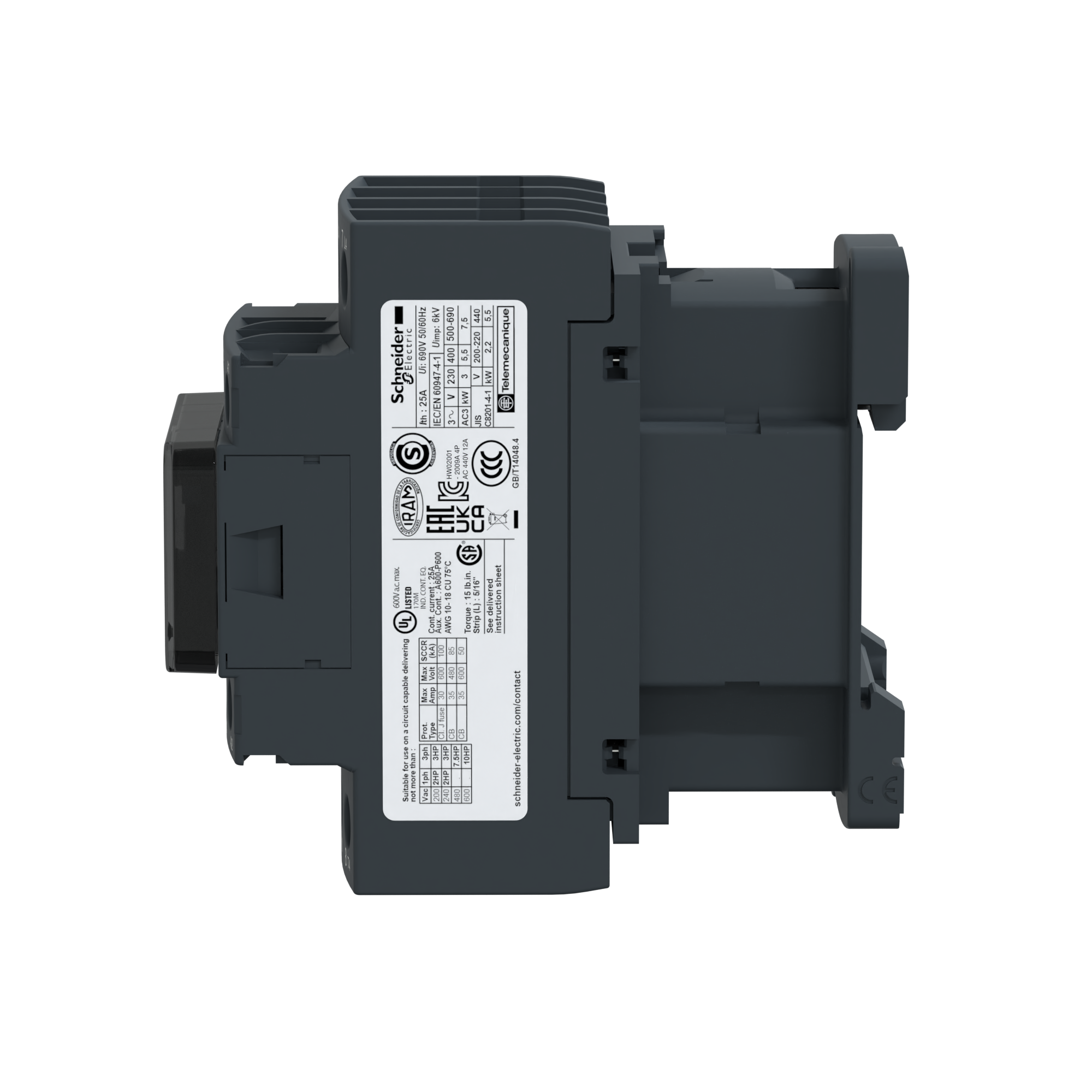

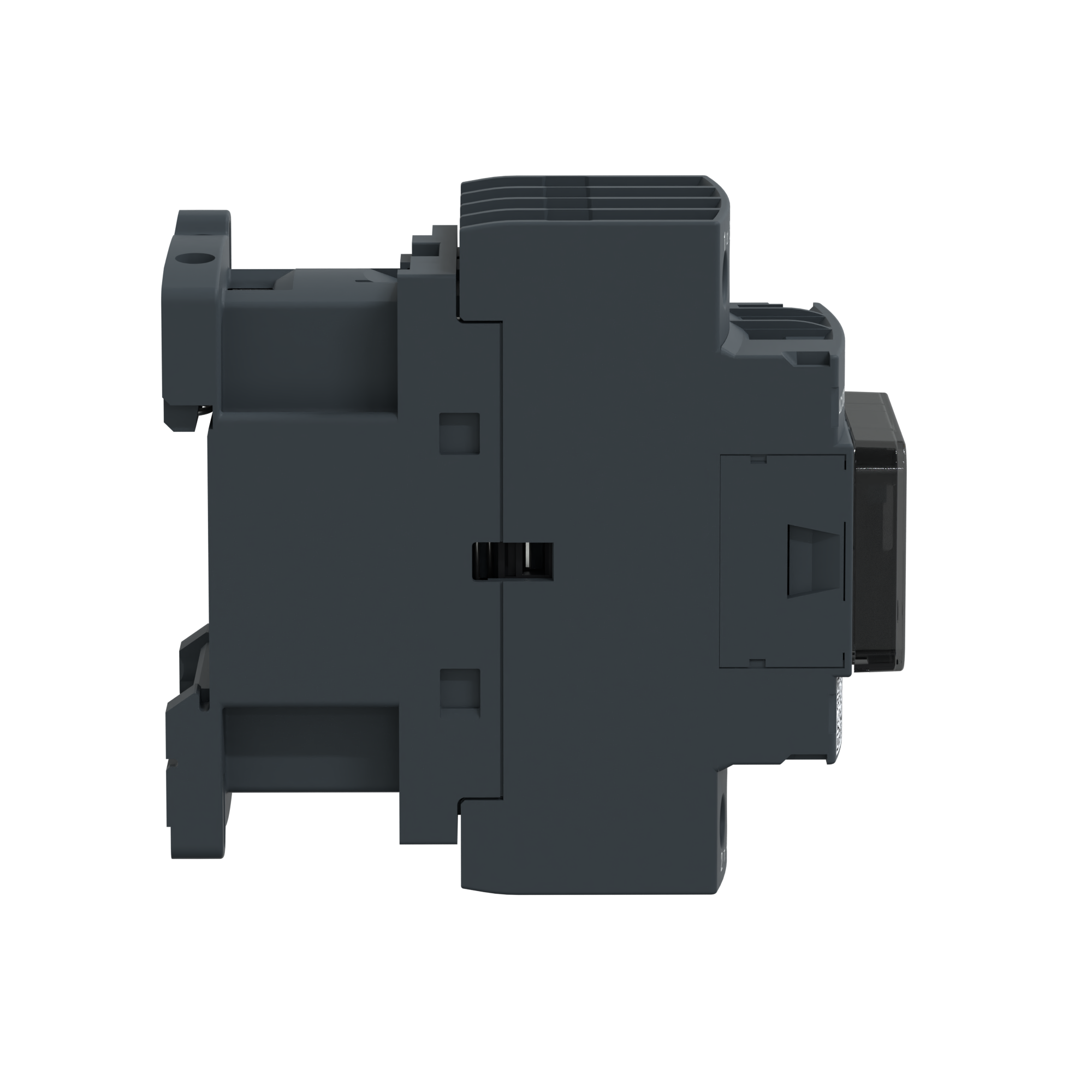

CONTACTOR LC1DT25ED
Product code
3782491
No product description available.
Product details
Technical specifications
Rated control supply voltage DC48 ... 48 V
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V25 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation power at AC-3, 400 V5.5 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Modular versionfalse
Product codes
SAPACH954
PLC3782491
STK3782491
GTIN/EAN3389110247800
Manufacturer part numberLC1DT25ED
Vendor material numberLC1DT25ED
Basic information
Package measurements (L x W x H)45 x 92 x 84 mm
Package volume0.348 l
Package weight0.35 kg
Base uniteach
Package units1 / 24 / 240
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
