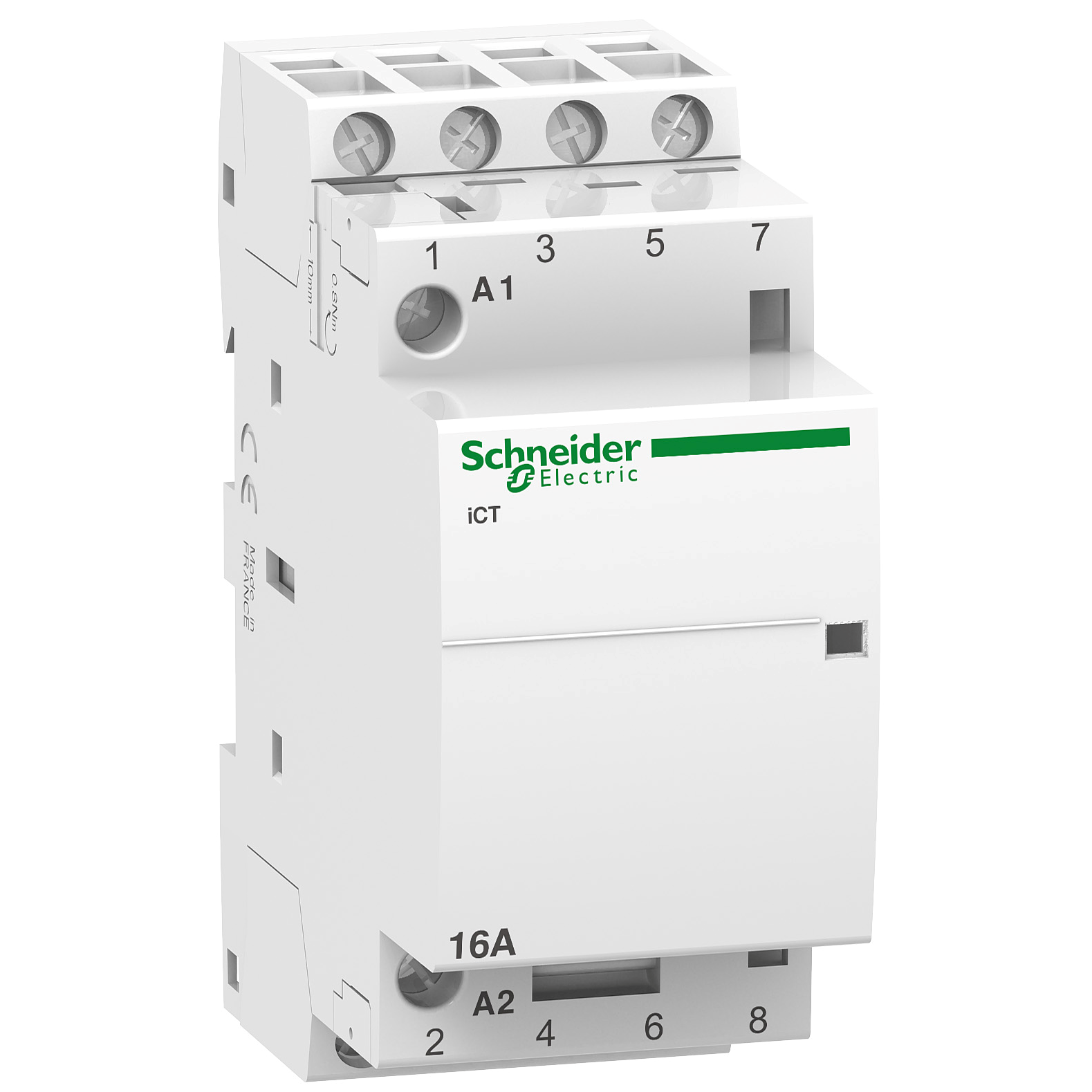

CONTACTOR ACTI 9 ICT MOD KONT 16A/AC7A 4S 24VAC
Product code
3781781
No product description available.
Product details
Technical specifications
Rated operating voltage400 ... 400 V
Rated operation current16 A
Rated excitation voltage24 ... 24 V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact4
Number of contacts as normally closed contact0
Max. incandescent lamp load6000 W
Max. load fluorescent lamp2550 VA
Max. load fluorescent lamp (Duo circuit)4500 VA
Max. load fluorescent lamp (parallel compensated)2400 VA
Slider for hand switchfalse
Built-in depth43.5 mm
Additional equipment possibletrue
Degree of protection (IP)IP20
Product codes
SAPHEK378
PLC3781781
STK3781781
GTIN/EAN3606480096952
Manufacturer part numberA9C22114
Vendor material number3781781
Basic information
Package measurements (L x W x H)40 x 125 x 220 mm
Package volume1.1 l
Package weight0.233 kg
Base uniteach
Package units1 / 6 / 36
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
