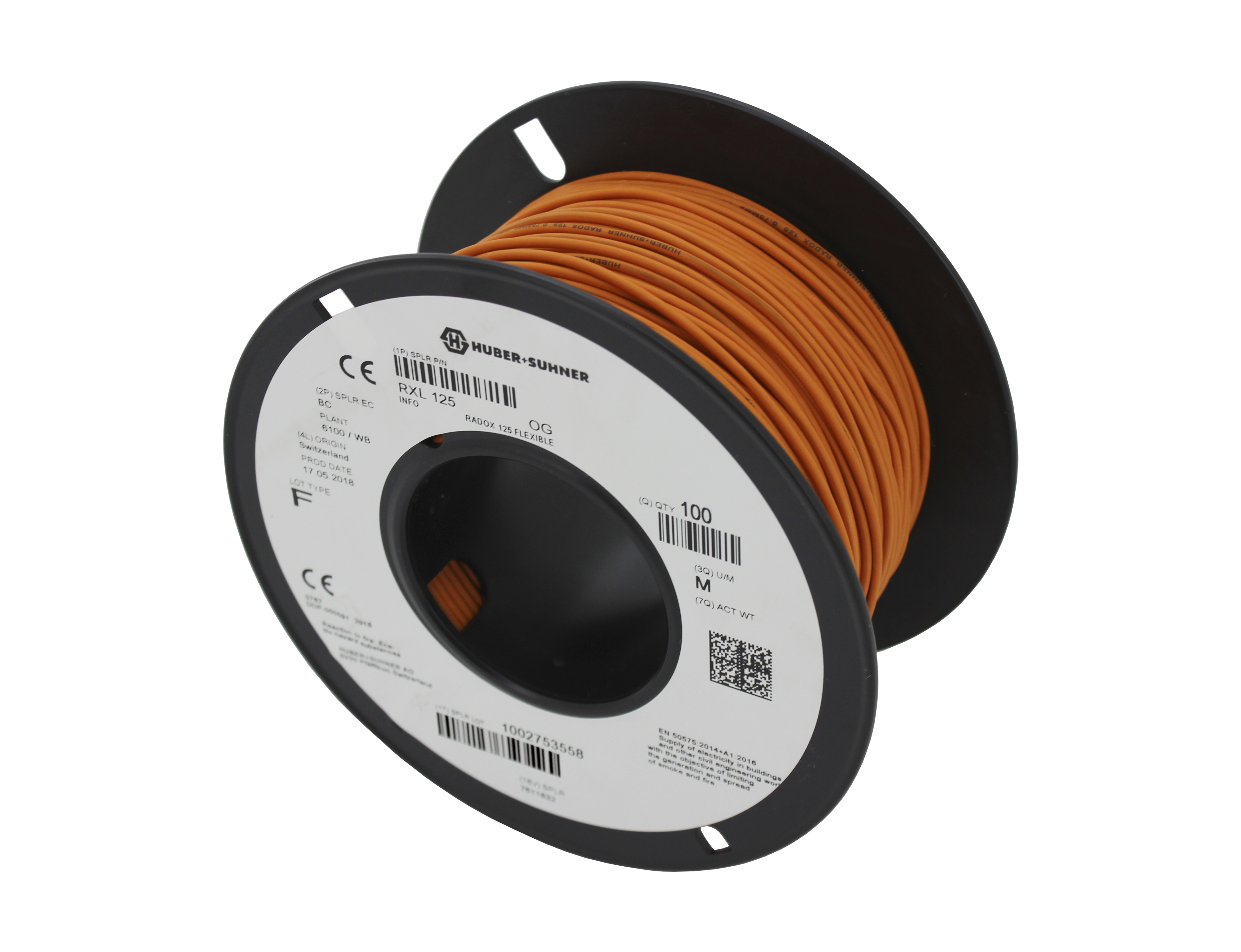

INSTALLATION LEAD-HF RADOX 125 4 ORANGE D100 Eca
Product code
0430484
No product description available.
Product details
Technical specifications
Conductor materialCopper
Nominal cross section conductor4 mm²
Conductor categoryClass 5 = flexible
Number of cores1
Screenfalse
Concentric conductorCopper
Material outer sheathOther
Colour outer sheathOrange
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approx.4.15 mm
Nominal voltage U00.6 kV
Nominal voltage U1 kV
Product codes
SAPCHC644
PLC0430484
STK0430484
GTIN/EAN6438056259488
Manufacturer part number84093193/D100 DNV
Vendor material number84093193/D100 DNV
Basic information
Package measurements (L x W x H)1000 x 4.15 x 4.15 mm
Package volume0.017 l
Package weight0.047 kg
Base unitMeter
Package units100
Package contents–
UNSPSC26121543
BrandRADOX
VendorHUBER + SUHNER (UK) LTD
Documents (7)
Brochures & documents
Links
Sustainability information
Features
Halogen freeYes
Made from PVCNo
