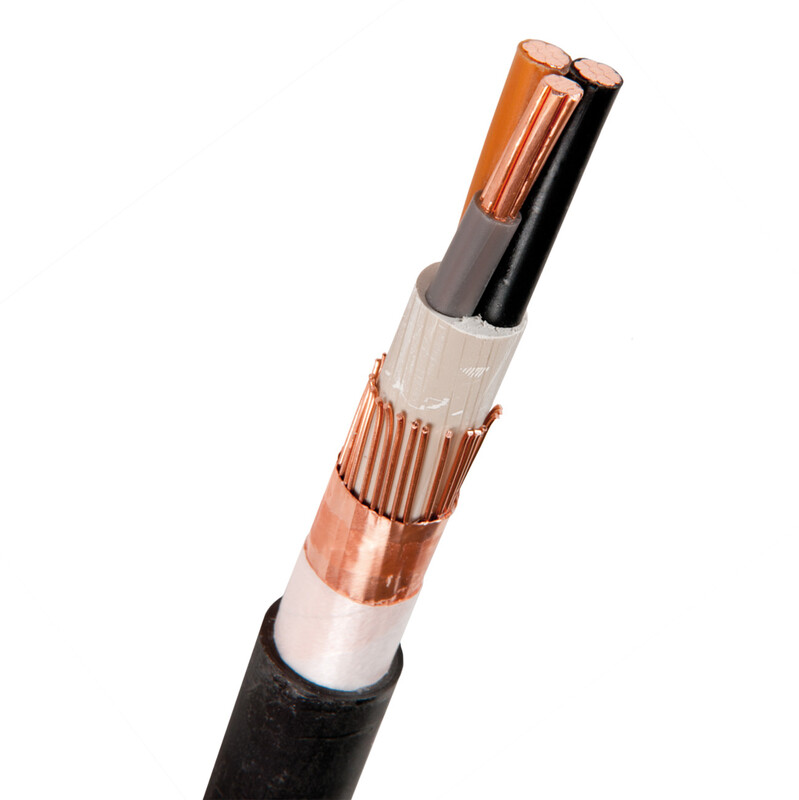

COPPER POWER CABLE-HF EMC MCMK HF EMC 1 kV 3X35/16 Dca
Product code
0622825
No product description available.
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor35 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.524 Ohm/km
Shape of conductorRound
Number of cores4
Material core insulationOther
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2true
Core identificationColour
Laminated sheathfalse
Fibre optic elementsfalse
With protective conductortrue
Inner semi-conducting layerfalse
Product codes
SAPCDY020
PLC0622825
STK0622825
GTIN/EAN7330000076754
Manufacturer part number15141998-201-05
Vendor material number0622825
Basic information
Package measurements (L x W x H)1000 x 28 x 28 mm
Package volume0.784 l
Package weight1.652 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (2)
Certificates
Links
Sustainability information
Features
Amount of embodied carbon (tCO2e)3.57006688970518
EPD documentYes
Halogen freeYes
Made from PVCNo
Material for CO2 dataCopper
