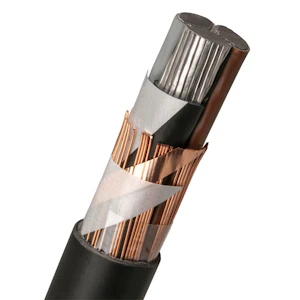

ALUM. POWER CABLE-HF NEXANS AMCMK HF EASY 1 KV 4X95/29
Product code
0623200
No product description available.
Product details
Technical specifications
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor95 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.32 Ohm/km
Shape of conductorSector-shaped
Number of cores4
Material core insulationOther
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2true
Core identificationColour
Laminated sheathfalse
With protective conductortrue
Screentrue
Concentric conductorCopper
Product codes
SAPCSB200
PLC0623200
STK0623200
GTIN/EAN7330000168176
Manufacturer part number15164098-201-05
Vendor material number0623200
Basic information
Package measurements (L x W x H)1000 x 1000 x 37 mm
Package volume1.369 l
Package weight1.84 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (4)
Certificates
Brochures & documents
Links
Sustainability information
Features
Amount of embodied carbon (tCO2e)11.1911055374188
EPD documentYes
Halogen freeYes
Made from PVCNo
Material for CO2 dataAluminium
Documents (1)
Sustainability brochures & documents
