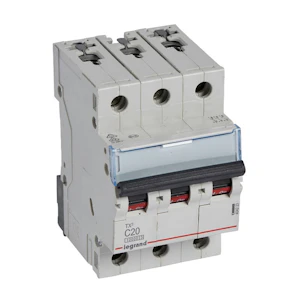

CIRCUIT BREAKER MCB 3-POLE 10KA, C20
Product code
3235082
No product description available.
Product details
Technical specifications
Built-in depth44 mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current20 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Frequency50 ... 60 Hz
Current limiting class3
Concurrently switching neutral conductorfalse
Pollution degree2
Product codes
SAPHEC607
PLC3235082
STK3235082
GTIN/EAN3414970394392
Manufacturer part number404223
Vendor material number404223
Basic information
Package measurements (L x W x H)101 x 58 x 89 mm
Package volume0.521 l
Package weight0.401 kg
Base uniteach
Package units1 / 200
Package contents–
UNSPSC39121603
BrandLEGRAND
VendorLEGRAND DANMARK A/S
