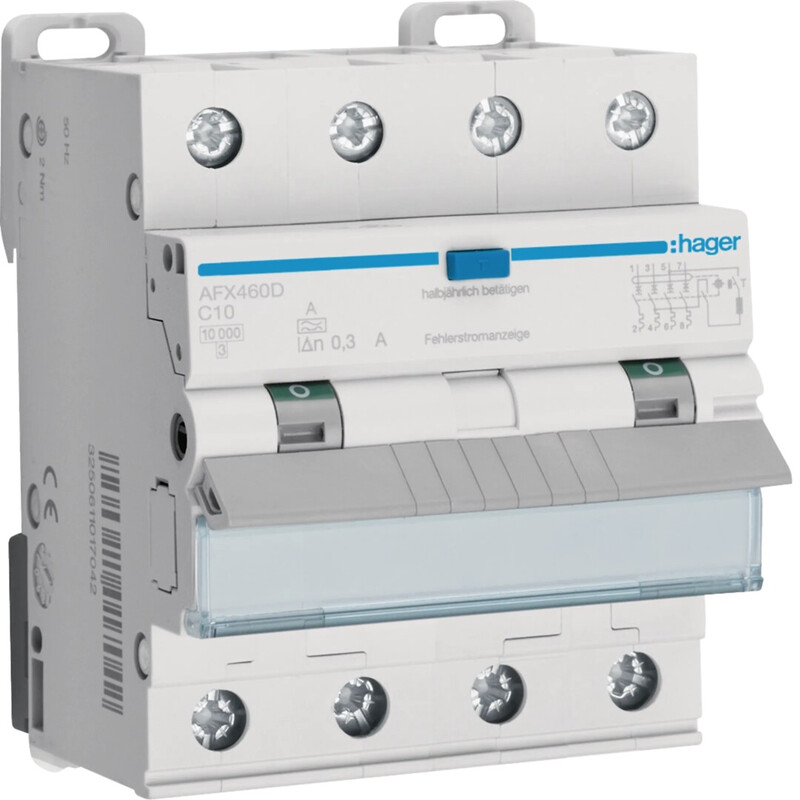

RCCB AFX460D 300MA A/4X10A C-C 10KA

Product code
3246278
No product description available.

Product details

Technical specifications

Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current10 A
Rated fault current0.3 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 61009-110 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC

Product codes

SAPCCX909
PLC3246278
STK3246278
GTIN/EAN3250611017189
Manufacturer part numberAFX460D
Vendor material number3246278

Basic information

Package measurements (L x W x H)80 x 80 x 100 mm
Package volume0.64 l
Package weight0.81 kg
Base uniteach
Package units1 / 33 / 792
Package contents
UNSPSC39121614
BrandHAGER
VendorUTU OY
