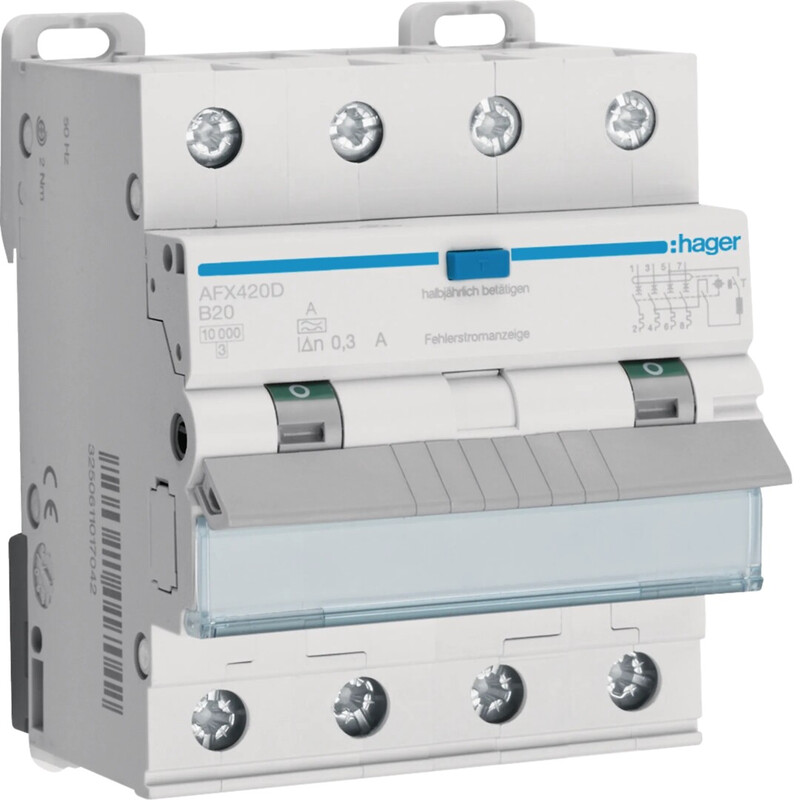

RCCB AFX420D 300MA A/4X20A B-C 10KA
Product code
3246273
No product description available.
Product details
Technical specifications
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current20 A
Rated fault current0.3 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 61009-110 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Release characteristicB
Product codes
SAPCCX906
PLC3246273
STK3246273
GTIN/EAN3250611017134
Manufacturer part numberAFX420D
Vendor material number3246273
Basic information
Package measurements (L x W x H)80 x 80 x 100 mm
Package volume0.64 l
Package weight0.76 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
