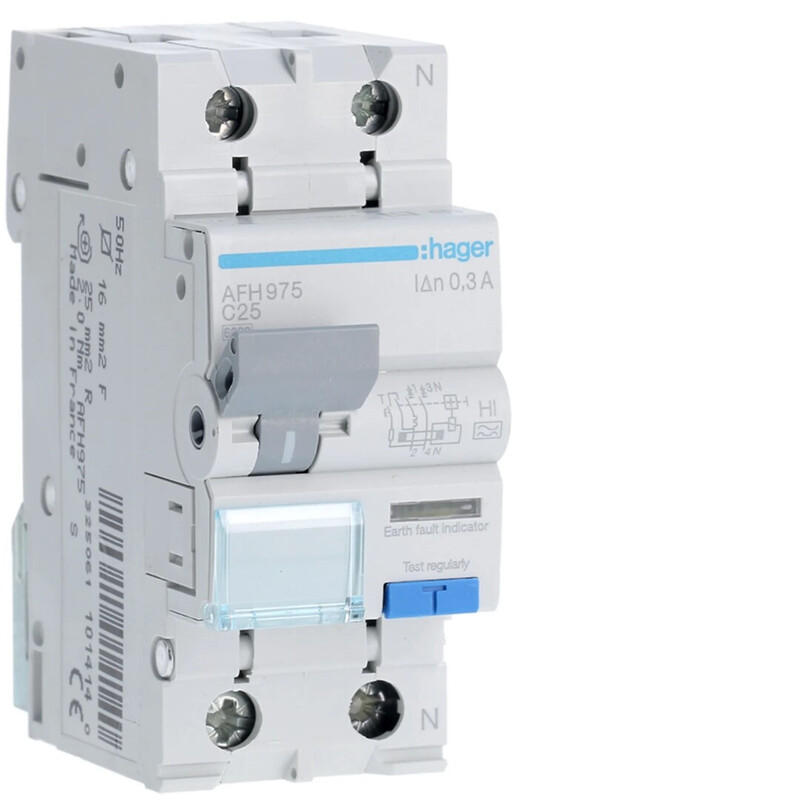

RCBO AFH975 2X25A 300MA A-HI C-CURV
Product code
3263816
RCBO 1P+N 6kA C-25A 300mA HI
RCBO 1P+N 6kA C-25A 300mA HI Class
Product details
Technical specifications
Number of poles (total)2
Number of protected poles1
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current25 A
Rated fault current0.3 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity according to IEC 60947-26 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Product codes
SAPALN738
PLC3263816
STK3263816
GTIN/EAN3250611014140
Manufacturer part numberAFH975
Vendor material number3263816
Basic information
Package measurements (L x W x H)40 x 100 x 80 mm
Package volume0.32 l
Package weight0.24 kg
Base uniteach
Package units1 / 60 / 1440
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
