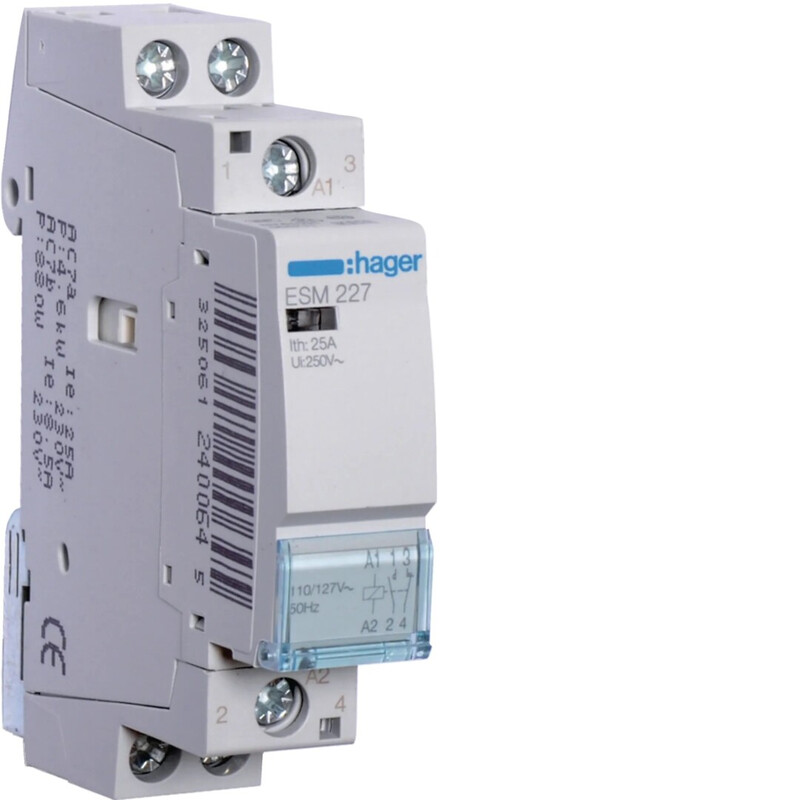

CONTACTOR ESM227 1NO+1NC 25A C.110/127V
Product code
3748083
Contactor 25A, 1NO+1NC, 110/127V
Contactor 25A, 1NO+1NC, 110/127V~50Hz
Product details
Technical specifications
Rated operating voltage230 ... 230 V
Rated operation current25 A
Rated excitation voltage110 ... 127 V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Max. incandescent lamp load1900 W
Max. load fluorescent lamp950 VA
Max. load fluorescent lamp (Duo circuit)1990 VA
Max. load fluorescent lamp (parallel compensated)810 VA
Slider for hand switchfalse
Width in number of modular spacings1
Built-in depth60 mm
Additional equipment possibletrue
Product codes
SAPATB574
PLC3748083
STK3748083
GTIN/EAN3250612400645
Manufacturer part numberESM227
Vendor material number3748083
Basic information
Package measurements (L x W x H)65 x 17.9 x 85.4 mm
Package volume0.16 l
Package weight0.128 kg
Base uniteach
Package units1 / 108 / 2592
Package contents–
UNSPSC39121529
BrandHAGER
VendorUTU OY
