SINGLE-STAGE PUMP GRUNDFOS TP 80-90/4-A-F-A-BQQE 400Y

Name: SINGLE-STAGE PUMP GRUNDFOS TP 80-90/4-A-F-A-BQQE 400Y
Brand: GRUNDFOS
SKU: CGX204

Product code

96108602

No product description available.

Product details

Material pump casingCast iron

Material quality pump casingCast iron GG 25 (GJL-250)

Material impeller/pump wheelCast iron

Material quality impeller/pump wheelCast iron EN-GJS-400-15 (GGG 40)

Volume flow rate (BEP)54.7 m³/h

Discharge head at flow rate (BEP)74.51 kPa

Max. discharge flow54.7 m³/h

Max. static height9 m

Max. operating pressure16 bar

Double pumpfalse

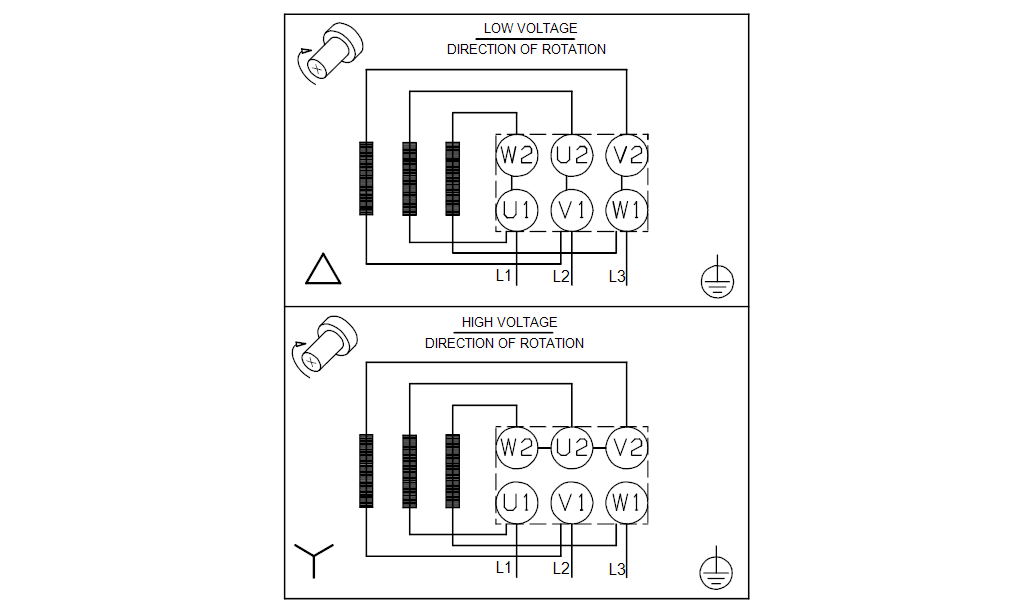

Electrical connectionTerminals

Rated voltage380 ... 420 V

Number of phases3

Frequency50 Hz

Nominal current3.15 A

SAPCGX204

HPACCGX204

PLC96108602

GTIN/EAN5700396975580

Manufacturer part number96108602

Vendor material number96108602

Package measurements (L x W x H)800 x 600 x 797 mm

Package volume382.56 l

Package weight87 kg

Base uniteach

Package units1

Package contents–

UNSPSC40151503

BrandGRUNDFOS

VendorGRUNDFOS PUMPUT OY AB
