SINGLE-STAGE PUMP GRUNDFOS TP 65-340/2-A-F-A-BQQE 400D

Product code
96087524
No product description available.

Product details

Technical specifications

Material pump casingCast iron
Material quality pump casingCast iron GG 25 (GJL-250)
Material impeller/pump wheelCast iron
Material quality impeller/pump wheelCast iron EN-GJS-400-15 (GGG 40)
Volume flow rate (BEP)49.1 m³/h
Discharge head at flow rate (BEP)274.52 kPa
Max. discharge flow49.1 m³/h
Max. static height34 m
Max. operating pressure16 bar
Double pumpfalse

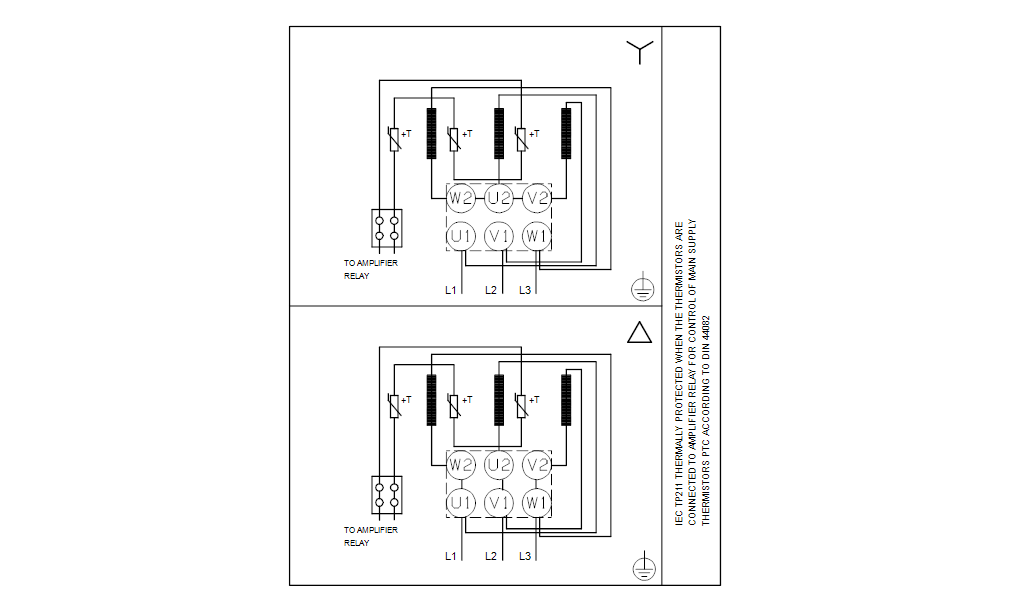

Electrical connectionTerminals
Rated voltage380 ... 415 V
Number of phases3
Frequency50 Hz
Nominal current11 A

Product codes

SAPCGX188
HPACCGX188
PLC96087524
GTIN/EAN5700395314892
Manufacturer part number96087524
Vendor material number96087524

Basic information

Package measurements (L x W x H)800 x 400 x 557 mm
Package volume178.24 l
Package weight105 kg
Base uniteach
Package units1
Package contents
UNSPSC40151503
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB

Documents (1)
