SINGLE-STAGE PUMP GRUNDFOS TP 65-130/4-A-F-A-BQQE 400Y

Product code
96087443
No product description available.

Product details

Technical specifications

Material pump casingCast iron
Material quality pump casingCast iron GG 25 (GJL-250)
Material impeller/pump wheelCast iron
Material quality impeller/pump wheelCast iron EN-GJS-400-15 (GGG 40)
Volume flow rate (BEP)29.8 m³/h
Discharge head at flow rate (BEP)103.92 kPa
Max. discharge flow29.8 m³/h
Max. static height13 m
Max. operating pressure16 bar
Double pumpfalse

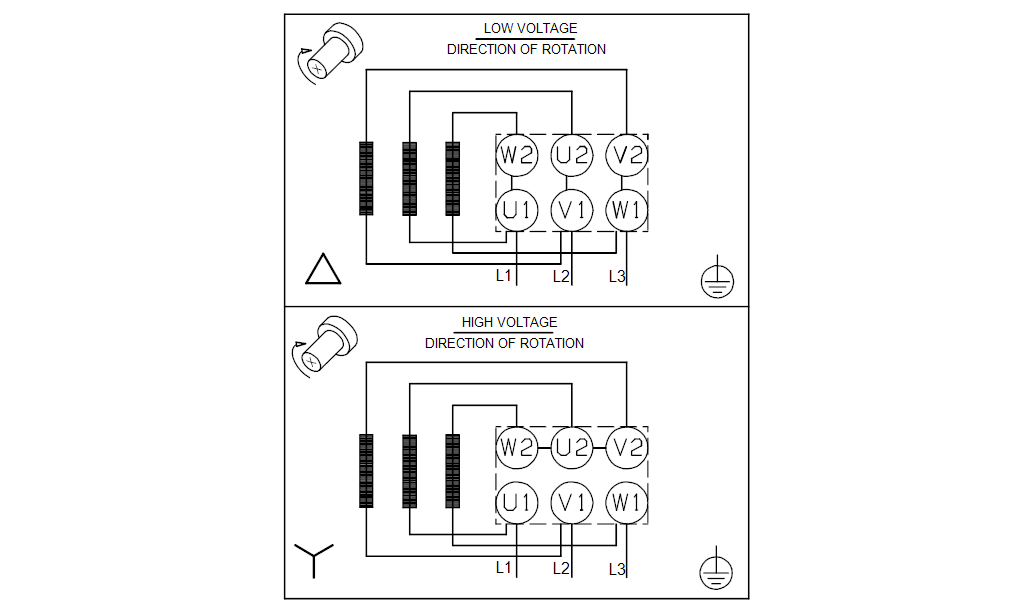

Electrical connectionTerminals
Rated voltage380 ... 420 V
Number of phases3
Frequency50 Hz
Nominal current3.15 A

Product codes

SAPCGX184
HPACCGX184
PLC96087443
GTIN/EAN5700395314090
Manufacturer part number96087443
Vendor material number96087443

Basic information

Package measurements (L x W x H)800 x 600 x 797 mm
Package volume382.56 l
Package weight85 kg
Base uniteach
Package units1
Package contents
UNSPSC40151503
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB

Documents (1)
