SINGLE-STAGE PUMP GRUNDFOS TP 65-110/4-A-F-A-BQQE 400Y
Product code
96087442
No product description available.
Product details
Technical specifications
Material pump casingCast iron
Material quality pump casingCast iron GG 25 (GJL-250)
Material impeller/pump wheelCast iron
Material quality impeller/pump wheelCast iron EN-GJS-400-15 (GGG 40)
Volume flow rate (BEP)26.8 m³/h
Discharge head at flow rate (BEP)93.14 kPa
Max. discharge flow26.8 m³/h
Max. static height11 m
Max. operating pressure16 bar
Double pumpfalse

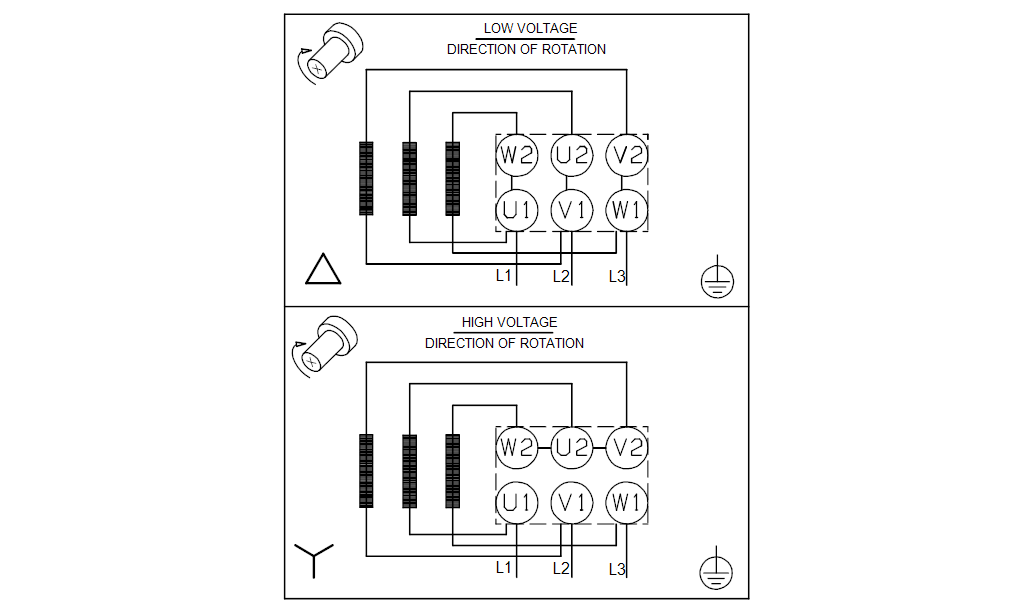

Electrical connectionTerminals
Rated voltage380 ... 420 V
Number of phases3
Frequency50 Hz
Nominal current2.4 A
Product codes
SAPCGX152
HPACCGX152
PLC96087442
GTIN/EAN5700395314083
Manufacturer part number96087442
Vendor material number96087442
Basic information
Package measurements (L x W x H)800 x 600 x 797 mm
Package volume382.56 l
Package weight82 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151503
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
