SINGLE-STAGE PUMP GRUNDFOS TP 40-90/4-A-F-A-BQQE 400Y
Product code
98462889
No product description available.
Product details
Technical specifications
Material pump casingCast iron
Material quality pump casingCast iron GG 25 (GJL-250)
Material impeller/pump wheelStainless steel
Material quality impeller/pump wheelStainless steel 304 (1.4301)
Volume flow rate (BEP)6 m³/h
Discharge head at flow rate (BEP)50 kPa
Max. discharge flow6 m³/h
Max. static height9 m
Max. operating pressure16 bar
Double pumpfalse

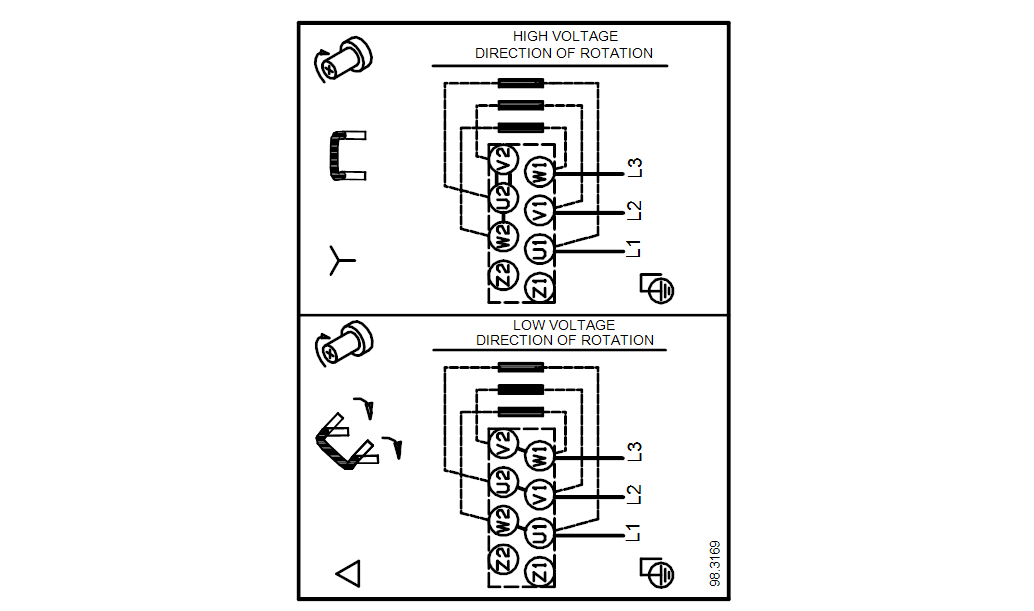

Electrical connectionTerminals
Rated voltage380 ... 415 V
Number of phases3
FrequencyOther
Nominal current0.79 A
Product codes
SAPCGX229
HPACCGX229
PLC98462889
GTIN/EAN5711495499716
Manufacturer part number98462889
Vendor material number98462889
Basic information
Package measurements (L x W x H)400 x 300 x 654 mm
Package volume78.48 l
Package weight28.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151503
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
Documents (1)
Images
