SINGLE-STAGE PUMP GRUNDFOS TP 100-250/2-A-F-A-BQQE 400D
Product code
96109192
No product description available.
Product details
Technical specifications
Material pump casingCast iron
Material quality pump casingCast iron GG 25 (GJL-250)
Material impeller/pump wheelCast iron
Material quality impeller/pump wheelCast iron EN-GJS-400-15 (GGG 40)
Volume flow rate (BEP)135 m³/h
Discharge head at flow rate (BEP)208.83 kPa
Max. discharge flow135 m³/h
Max. static height25 m
Max. operating pressure16 bar
Double pumpfalse

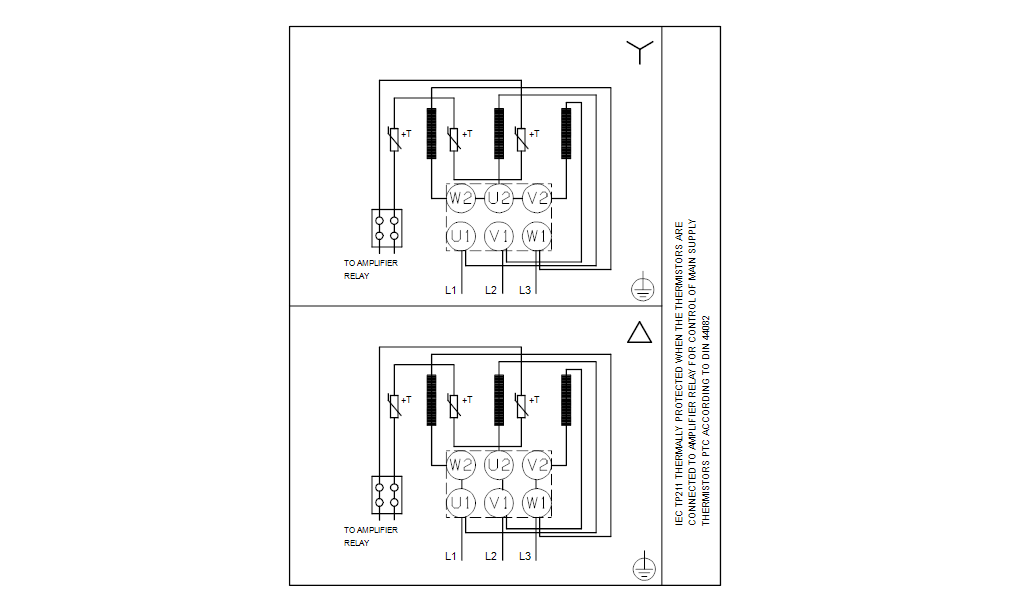

Electrical connectionTerminals
Rated voltage380 ... 415 V
Number of phases3
Frequency50 Hz
Nominal current20.23 A
Product codes
SAPCGX189
HPACCGX189
PLC96109192
GTIN/EAN5700396981697
Manufacturer part number96109192
Vendor material number96109192
Basic information
Package measurements (L x W x H)1200 x 800 x 1190 mm
Package volume1142.4 l
Package weight208 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151503
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
Documents (1)
Images
