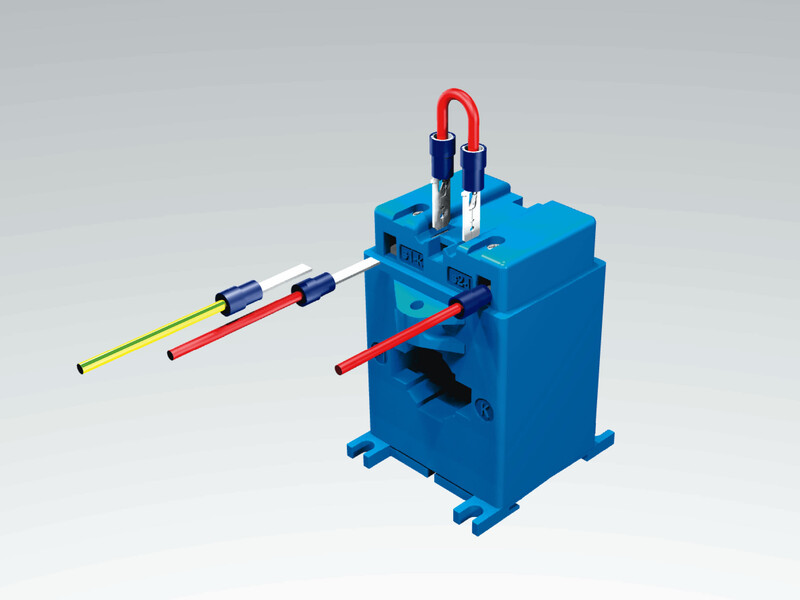

CURRENT TRANSFORMER TAC022 Ø22 300/5 9VA cl0.5
Product code
6784945
No product description available.
Product details
Technical specifications
ModelSingle-phase current converter
Primary rated current300 A
Secondary rated current5 A
Secondary rated apparent power9 VA
Accuracy class0.5
Overcurrent limiting factorFS 5
With shock protectionfalse

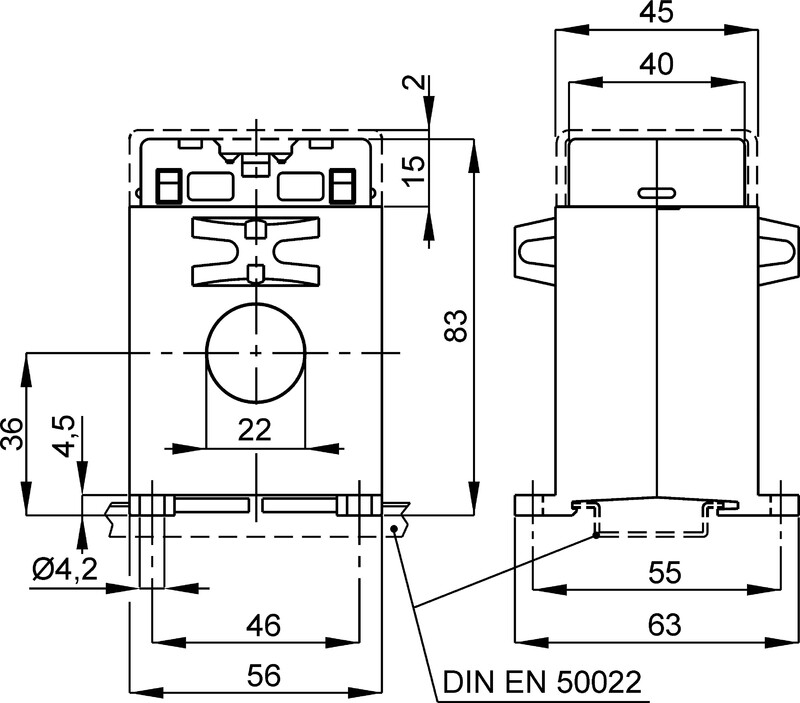

Opening diameter22 mm

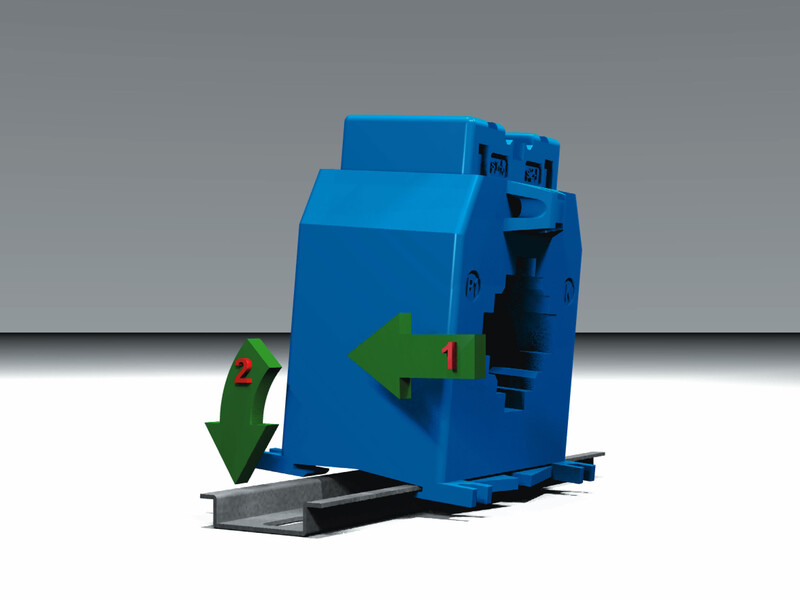

Snap mountingtrue
With copper railfalse
Secondary connectionScrew connection
Number of primary inputs1
Accuracy class0.5 %
Calibratedfalse
Secondary connectionScrew connection
Product codes
SAPAMZ079
PLC6784945
STK6784945
GTIN/EAN6410067849452
Manufacturer part numberTAC022300X05
Vendor material number6784945
Basic information
Package measurements (L x W x H)65 x 60 x 85 mm
Package volume0.332 l
Package weight0.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandFRER
VendorUTU OY
