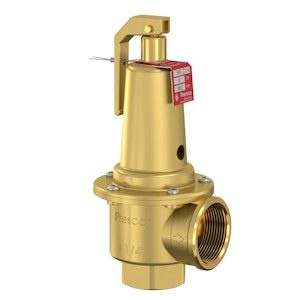

SAFETY VALVE FLAMCO 1 1/2x2 F 10 bar PRESCOR SB
Product code
3942496
No product description available.
Product details
Technical specifications
ModelRight-angled
Housing materialBrass
Material qualityDezincification resistant brass (DZR)
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 11 1/2 inch (40)
Outer pipe diameter connection 142.2 mm
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 22 inch (50)
Article compression classPN 16
Flange compression classPN 16
Max. operating pressure at 20 °C10 bar
Medium temperature (continuous)0 ... 95 °C
Surface protectionUntreated
Bellows sealtrue
SealingEthylene-propylene diene monomer rubber (EPDM)
Product codes
SAPCZK439
HPAC3942496
PLC3942496
GTIN/EAN8712874290136
Manufacturer part number29013
Vendor material number29013
Basic information
Package measurements (L x W x H)150 x 250 x 125 mm
Package volume4.688 l
Package weight2.739 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141604
BrandFLAMCO
VendorFLAMCO B.V
