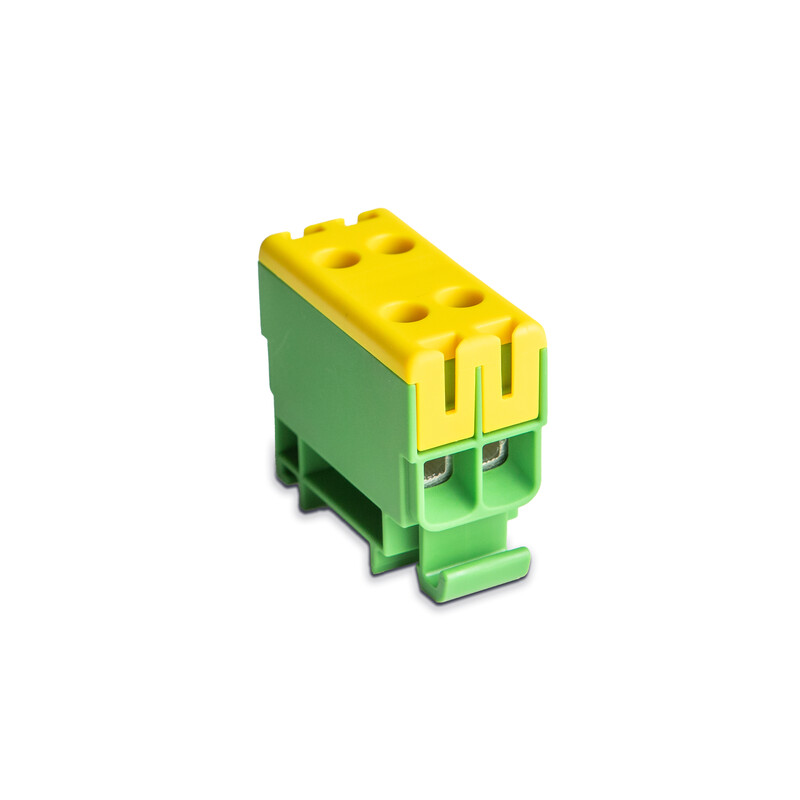

TERMINAL BLOCK CLAMPO PRO Y/G, AL/CU 16 mm2
Product code
1913151
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve10 ... 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 ... 10 mm²
Connectable conductor cross section solid-core1.5 ... 16 mm²
Connectable conductor cross section multi-wired1.5 ... 16 mm²
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level4
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5 ... 80 °C
Inflammability class of insulation material according to with UL94V2
Explosion-tested version 'Ex e'false
ColourGreen/yellow
Product codes
SAPDAY785
PLC1913151
STK1913151
GTIN/EAN6438100501549
Manufacturer part numberKE65.3
Vendor material number1913151
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.2 l
Package weight0.046 kg
Base uniteach
Package units30 / 3150
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
