ISOLATORS SDI 30
Product code
5010276
24 kV, SH 24 M SFS5004

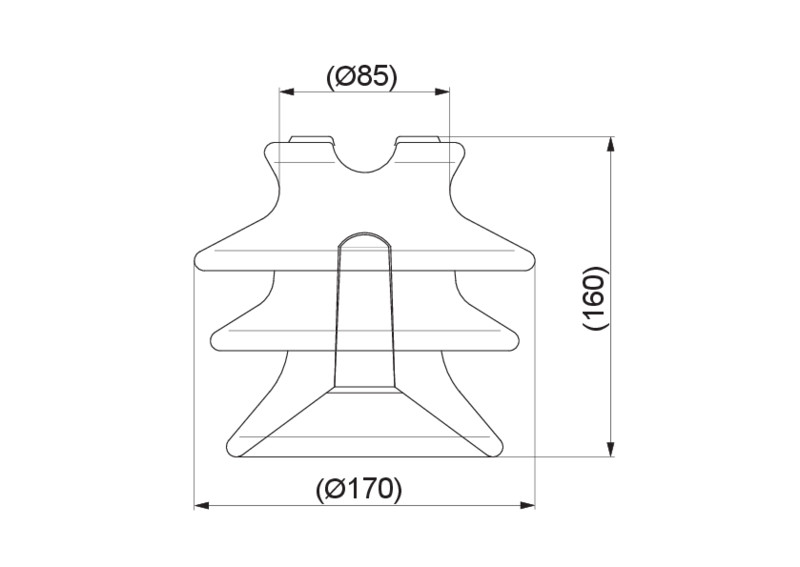

SDI30 is used with bare wires or covered conductors. Suitable for installation on pin SOT24 (SFS 4385). The conductor can be tied to the top-groove or to the neck. In angles, always tie to the neck. Creepage distance 325 mm. Neck diameter 85 mm.
Product details
Technical specifications
ModelPin insulator
Rated voltage24000 kV
MaterialPorcelain
Length160 mm
Diameter170 mm
Weight3.37 kg
Creepage path325 mm
Min. dry lightning impulse withstand voltage125 kV
Wet power frequency withstand voltage50 kV
Breaking load12500 kN
Total length160 mm
Type of insulatorPin insulator
Product codes
SAPAAK120
PLC5010276
STK5010276
GTIN/EAN6418677408748
Manufacturer part numberSDI30
Vendor material number5010276
Basic information
Package measurements (L x W x H)190 x 190 x 160 mm
Package volume5.776 l
Package weight1.667 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC32101522
BrandENSTO
VendorENSTO FINLAND OY
Documents (9)
Sustainability information
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
