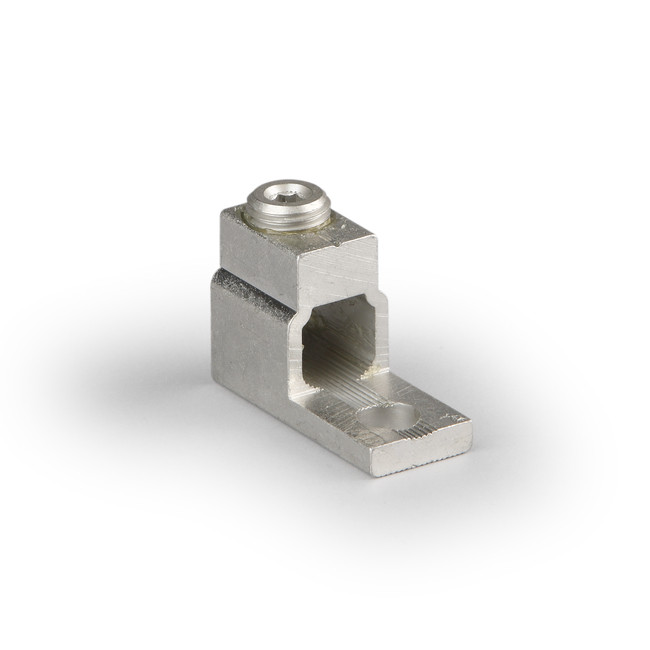

EQUIPMENT CLAMP KE53.2
Product code
1933463
Equipment terminal Al/Cu 35-150 mm², 320 A
Ensto Clampo Apparatus is a universal terminal series for connecting Al/Cu conductors to equipment.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve35 ... 120 mm²
Connectable conductor cross section fine-strand with cable end sleeve35 ... 120 mm²
Connectable conductor cross section multi-wired35 ... 150 mm²
Rated current In320 A
Type of electrical connection 1Screw connection
Type of electrical connection 2Bolt connection
Number of levels1
Number of clamp positions per level2
Mounting methodOther
Operating temperature-5 ... 80 °C
Explosion-tested version 'Ex e'false
ColourOther
Length60 mm
Width/grid dimension24.5 mm
Height at lowest possible mounting height40 mm
Product codes
SAPADQ014
PLC1933463
STK1933463
GTIN/EAN6418677192456
Manufacturer part numberKE53.2
Vendor material number1933463
Basic information
Package measurements (L x W x H)60 x 40 x 25 mm
Package volume0.06 l
Package weight0.051 kg
Base uniteach
Package units1 / 30 / 30
Package contents–
UNSPSC39121409
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
