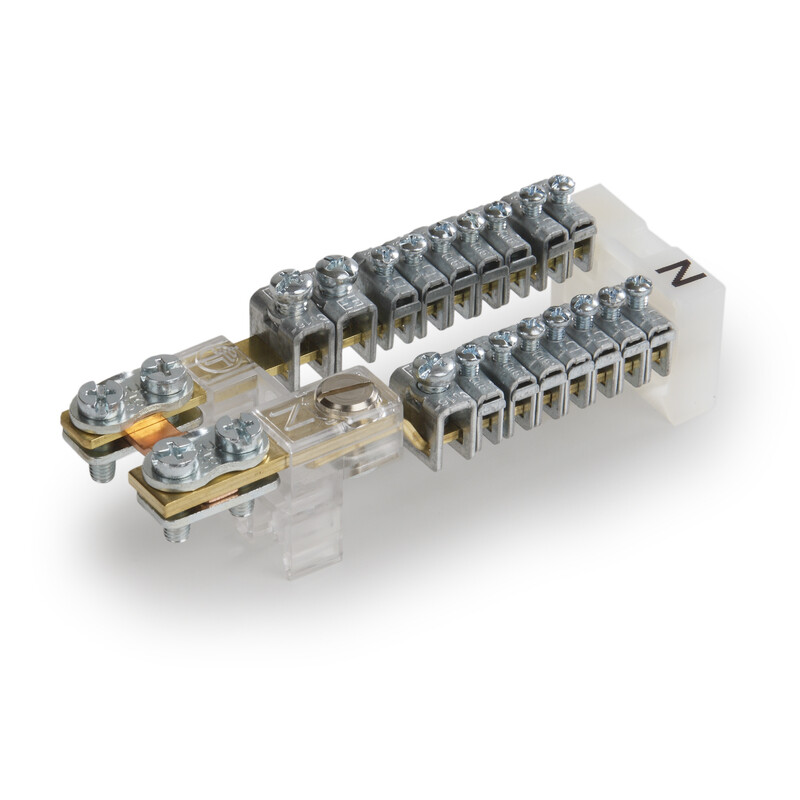

EARTH CONNECTOR CU, N/PE 2/3x16mm2+32x6mm2
Product code
1913479
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve1.5 ... 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 ... 10 mm²
Connectable conductor cross section multi-wired1.5 ... 16 mm²
Rated current In82 A
Rated voltage500 V
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level69
Mounting methodDIN rail (top hat rail) 35 mm
Operating temperature-5 ... 80 °C
Explosion-tested version 'Ex e'false
ColourOther
Length40 mm
Width/grid dimension296 mm
Height at lowest possible mounting height35 mm
Product codes
SAPAAS154
HPACAAS154
PLC1913479
STK1913479
GTIN/EAN6418677163012
Manufacturer part numberKNA5.134
Vendor material number1913479
Basic information
Package measurements (L x W x H)296 x 40 x 35 mm
Package volume0.414 l
Package weight0.47 kg
Base uniteach
Package units20
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
