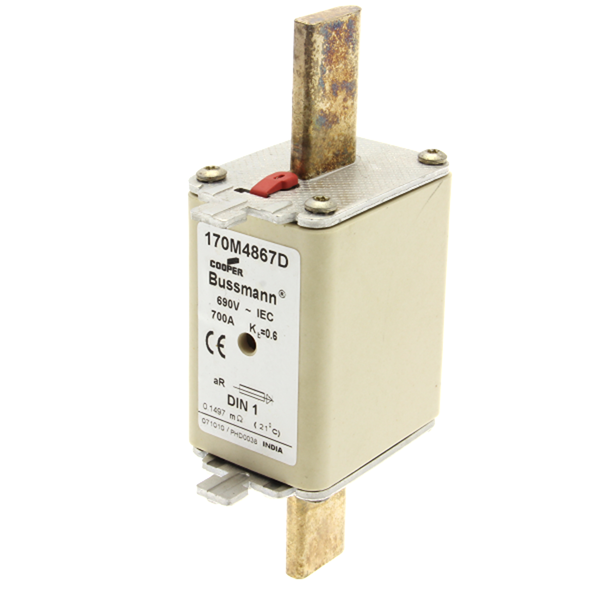

HIGH SPEED FUSE 170M4867D 690V 700A 1*

Product code
3115461
Fuse-link, high speed, 700 A, AC 690 V, DIN 1, aR, DIN, IEC, dual indicator, live gripping lugs
Fuse, Fuse-link, high speed, 700 A, AC 690 V, DIN 1, aR, DIN, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, indicator style T for microswitch, semiconductor protection, DIN 43620, IEC 60269-4, Breaking Capacity 200 kA

Product details

Technical specifications

Fuse system according to IEC 60269Other
Fuse construction type according to IEC 602691
Type of currentAC
Rated voltage AC690 V
Rated current700 A
Utilization categoryaR (accompanied semiconductor protection)
Breaking capacity200 kA
Colour codeNone
Type of fuse status indicatorCombination fuse status indicator
Power loss at rated current39 W

Product codes

SAPAIM960
PLC3115461
STK3115461
GTIN/EAN5027590252508
Manufacturer part number170M4867D
Vendor material number170M4867D

Basic information

Package measurements (L x W x H)85 x 30 x 50 mm
Package volume0.128 l
Package weight0.2 kg
Base uniteach
Package units1 / 6
Package contents
UNSPSC39121617
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland

Documents (4)
