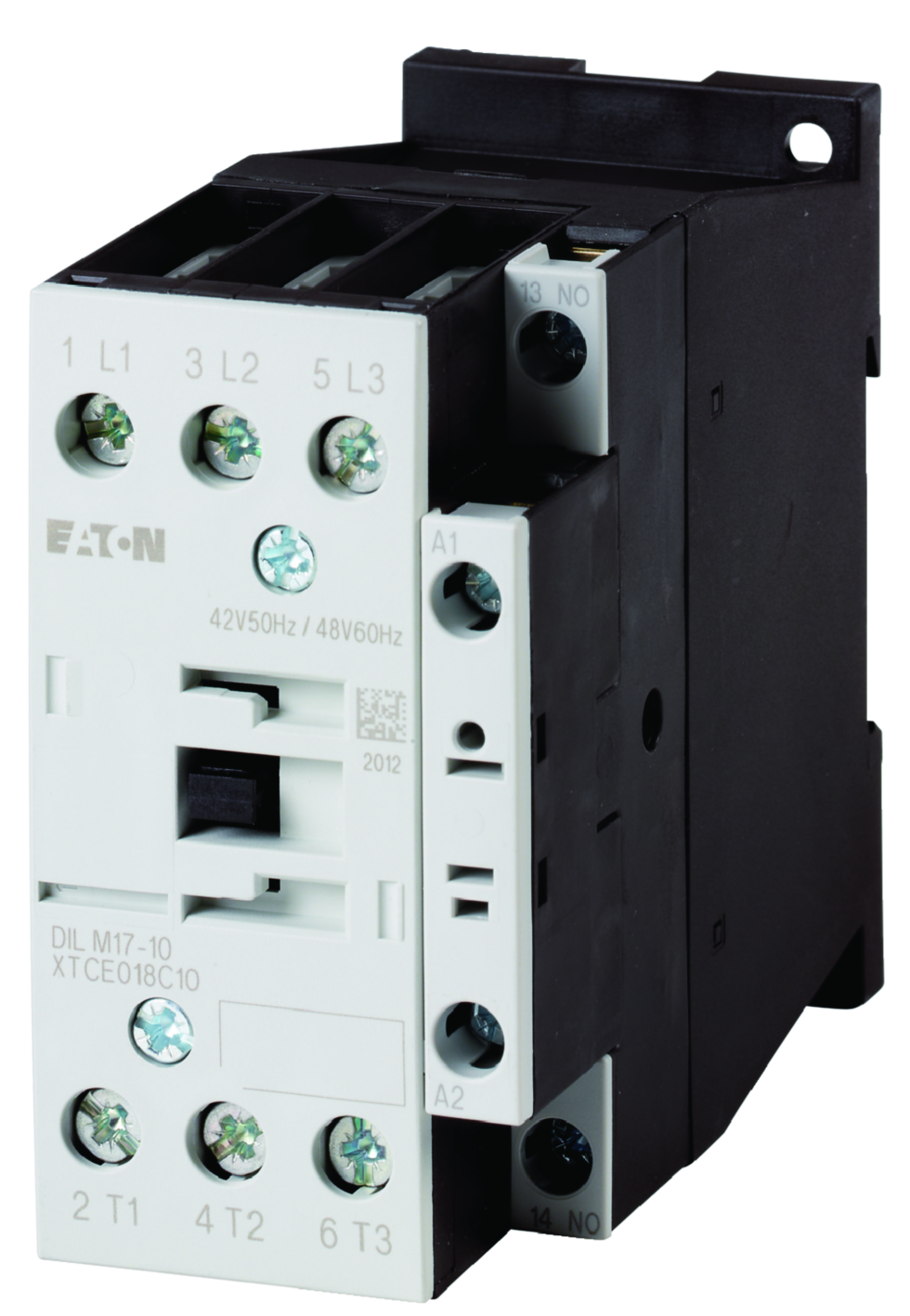

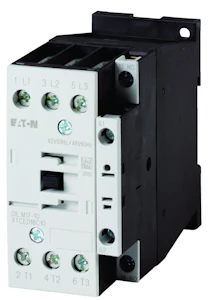

CONTACTOR DILM17-10(110V50HZ,120V60HZ)

Product code
3735155
No product description available.

Product details

Technical specifications

Rated control supply voltage AC 50 Hz110 ... 110 V
Rated control supply voltage AC 60 Hz120 ... 120 V
Rated control supply voltage DC0 ... 0 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz24 ... 690 V
Operating voltage AC 60 Hz24 ... 690 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V18 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation current Ie at AC-4, 400 V10 A
Rated operation power at AC-4, 400 V4.5 kW
Rated operation power NEMA7.4 kW

Product codes

SAPADB357
PLC3735155
STK3735155
GTIN/EAN4015082770013
Manufacturer part number277001
Vendor material number277001

Basic information

Package measurements (L x W x H)45 x 97 x 85 mm
Package volume0.371 l
Package weight0.445 kg
Base uniteach
Package units1
Package contents
UNSPSC39121529
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
